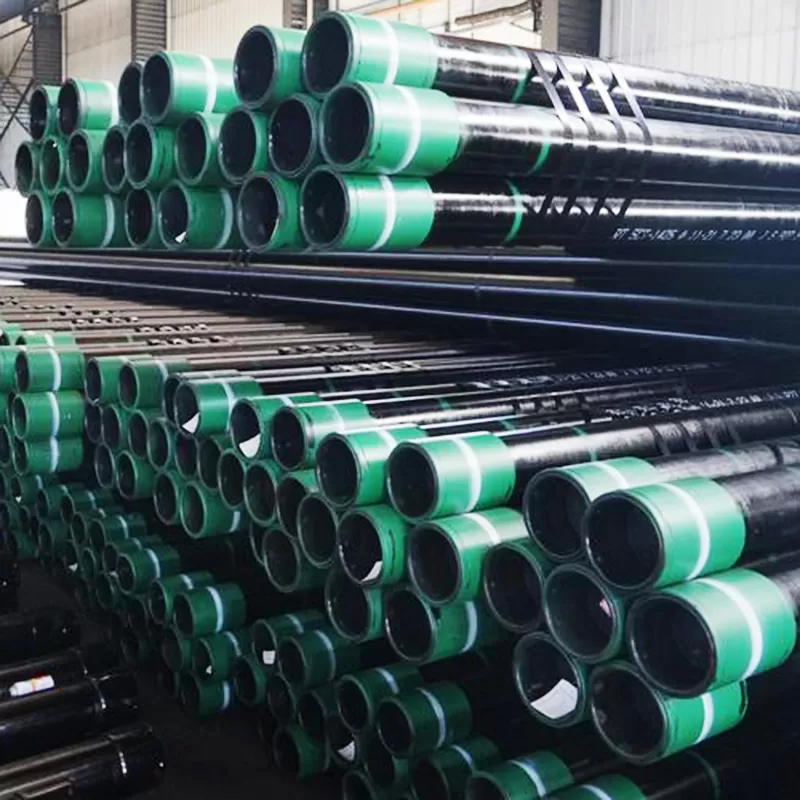

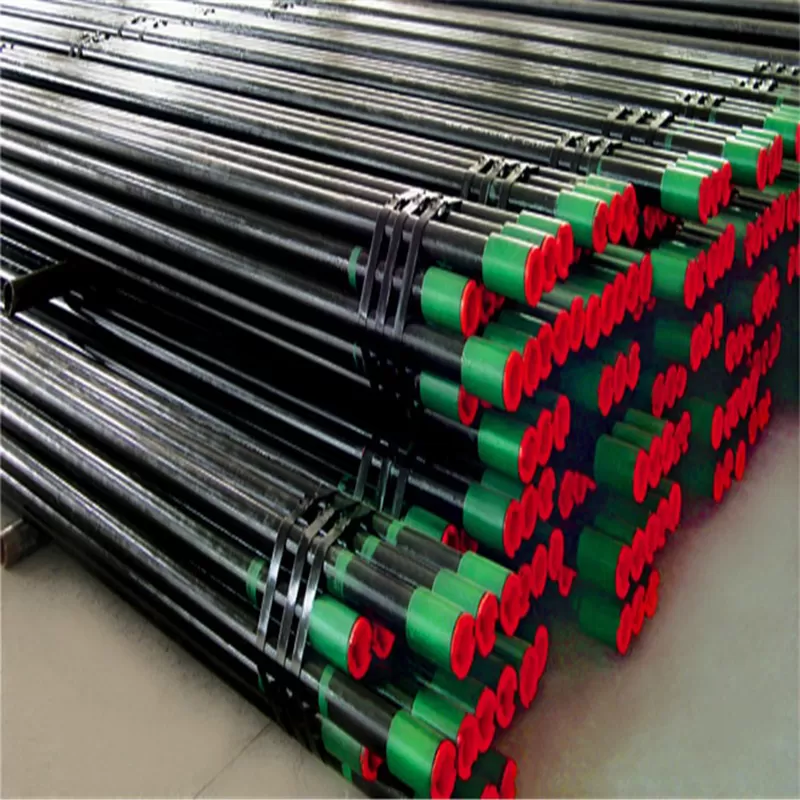

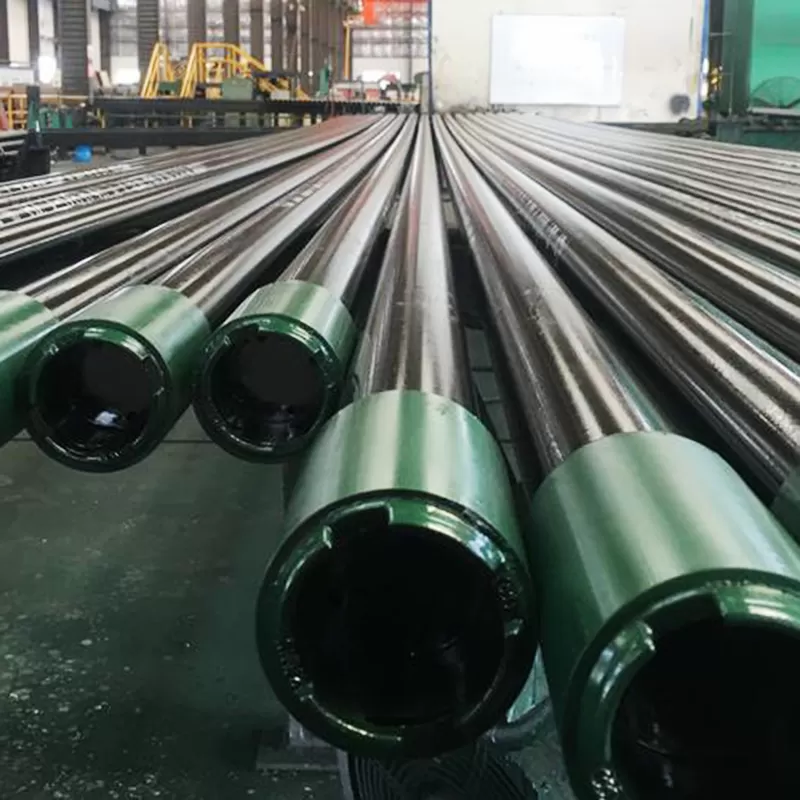

API Tubing Pipes: Precision-engineered tubular solutions for diverse industrial applications. With meticulous manufacturing processes and a wide range of materials, these pipes offer excellent dimensional accuracy, reliable performance, and enhanced durability. Ideal for use in oil and gas exploration, automotive systems, medical equipment, and more, ensuring the seamless flow and containment of fluids and gases in critical operations.
| Standard | API Standard |
Outside Diameter | 48-114mm |
| Wall Thickness | 3-16mm |
| Length | 6-12m, or other length as request |
Parameter of API Tubing Pipes
API Tubing pipes are tubular products used for transporting various fluids (such as liquids, gases) or as structural components. They are usually made of various metal materials, and the manufacturing process involves high-precision processing techniques such as cold rolling, cold drawing, etc., to ensure that the pipes have precise dimensional tolerances, good surface smoothness, and uniform wall thickness. These pipes play a crucial role in numerous industries.
| Standard | API Standard |
| API 5CT J55,N80-1,V80-Q;L80-1;L80-9Cr;L80-13Cr;C90;C95;P110,Q125 | |
| Size | Wall Thickness: 3-16mm |
| Outside Diameter: 48-114mm | |
| Length: 6-12m, or other length as request | |
| Materials | H40, J55, K55, N80, L80, C90,T95 and P110 |
| Thread type | NUE.EUE,BAM,Special clearance,VAN TOP,NEW VAM |
| Production technology | Plain pipe-end upsetting- Austenite treatment-Quenching-Tempering-straightening-(Non-Destructive Testing)- Threading-Thread inspection-coupling MPI-phosphating-Coupling make up-Drifting-Hydrostatic testing-Measuring&Weight-Marking&Stenciling-Coating-Packing Casing and tubing-Transportation |
| Application | Oil Tubing is widely used for transporting crude oil and natural gas to surface after drilling, which also bears pressure from exploration. |
Specification
| API 5CT Oil Tubing Dimension: | ||||||||||||
| Label | OD (mm) | WT (mm) | Type of End-finish | |||||||||
| Inch | NU T&C | EU T&C | IJ | H40 | J55 | L80 | N80 | C90 | T95 | P110 | ||
| 1.9 | 2.75 | 2.9 | 2.76 | 48.26 | 3.68 | PNUI | PNUI | PNUI | PNUI | PNUI | PNUI | - |
| 1.9 | 3.65 | 3.73 | - | 48.26 | 5.08 | PU | PU | PU | PU | PU | PU | PU |
| 1.9 | 4.42 | - | - | 48.26 | 6.35 | - | - | P | - | P | P | - |
| 2 3/8 | 4 | - | - | 60.32 | 4.24 | PU | PN | PN | PN | PN | PN | - |
| 2 3/8 | 4.6 | 4.7 | - | 60.32 | 4.83 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 2 3/8 | 5.8 | 5.95 | - | 60.32 | 6.45 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 3/8 | 6.6 | - | - | 60.32 | 7.49 | - | - | P | - | P | P | - |
| 2 3/8 | 7.35 | 7.45 | - | 60.32 | 8.53 | - | - | PU | - | PU | PU | - |
| 2 7/8 | 6.4 | 6.5 | - | 73.02 | 5.51 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 7.8 | 7.9 | - | 73.02 | 7.01 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 8.6 | 8.7 | - | 73.02 | 7.82 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 9.35 | 9.45 | - | 73.02 | 8.64 | - | - | PU | - | PU | PU | - |
| 2 7/8 | 10.5 | - | - | 73.02 | 9.96 | - | - | P | - | P | P | - |
| 3 1/2 | 7.7 | - | - | 88.9 | 5.49 | PN | PN | PN | PN | PN | PN | - |
| 3 1/2 | 9.2 | 9.3 | - | 88.9 | 6.45 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 3 1/2 | 10.2 | - | - | 88.9 | 7.34 | PN | PN | PN | PN | PN | PN | - |
| 3 1/2 | 12.7 | 12.95 | - | 88.9 | 9.52 | - | - | PNU | PNU | PNU | PNU | PNU |
| 3 1/2 | 14.3 | - | - | 88.9 | 10.92 | - | - | P | - | P | P | - |
| 3 1/2 | 15.5 | - | - | 88.9 | 12.09 | - | - | P | - | P | P | - |
| 4 | 9.5 | - | - | 101.6 | 5.74 | PN | PN | PN | PN | PN | PN | - |
| 4 | 10.7 | 11 | - | 101.6 | 6.65 | PU | PU | PU | PU | PU | PU | - |
| 4 | 13.2 | - | - | 101.6 | 8.38 | - | - | P | - | P | P | - |
| 4 | 16.1 | - | - | 101.6 | 10.54 | - | - | P | - | P | P | - |
| 4 1/2 | 12.6 | 12.75 | - | 114.3 | 6.88 | PNU | PNU | PNU | PNU | PNU | PNU | - |
| 4 1/2 | 15.2 | - | - | 114.3 | 8.56 | - | - | P | - | P | P | - |
| P-Plain end; N-Non Upset;U-External upset;T&C-Threaded and coupled | ||||||||||||
Features of API Tubing Pipes
Through advanced manufacturing processes such as cold drawing or cold rolling, Tubing Pipes can achieve highly precise outer and inner diameter dimensions as well as strictly controlled wall thickness tolerances.
With good surface quality and a smooth surface, it is conducive to the smooth flow of fluids, reduces frictional resistance and pressure loss, and also helps to improve the corrosion resistance of the pipes.
No matter what material the Tubing Pipes are made of, they all possess a certain combination of strength and toughness. In terms of withstanding internal pressure, they can meet the requirements of different pressure levels.
They have strong workability. It is easy to carry out various subsequent processing operations, such as cutting, bending, welding, thread processing, etc. This enables them to be flexibly customized and modified according to specific installation requirements and system designs.
