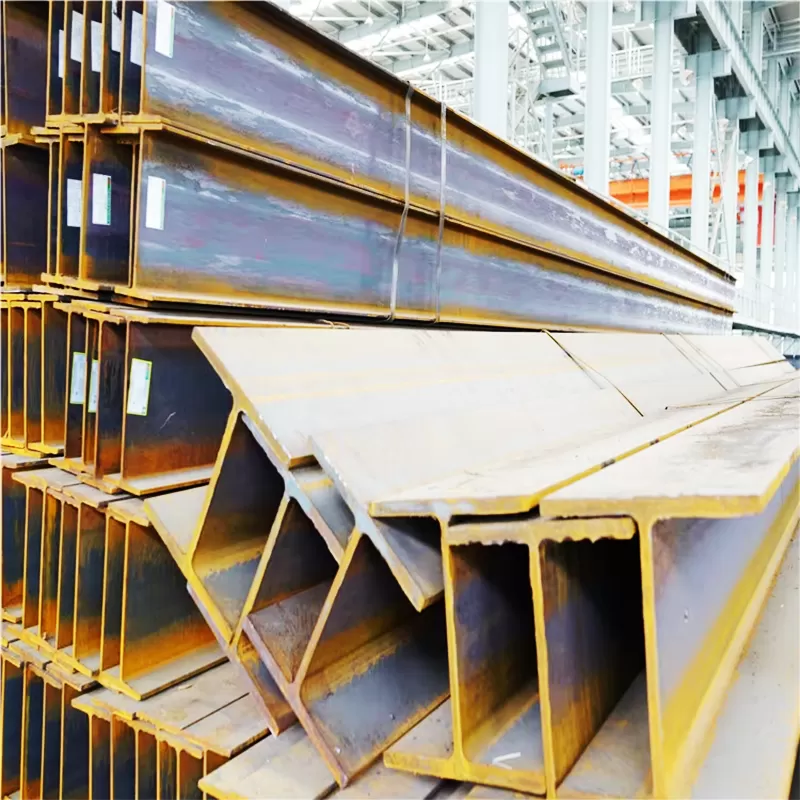

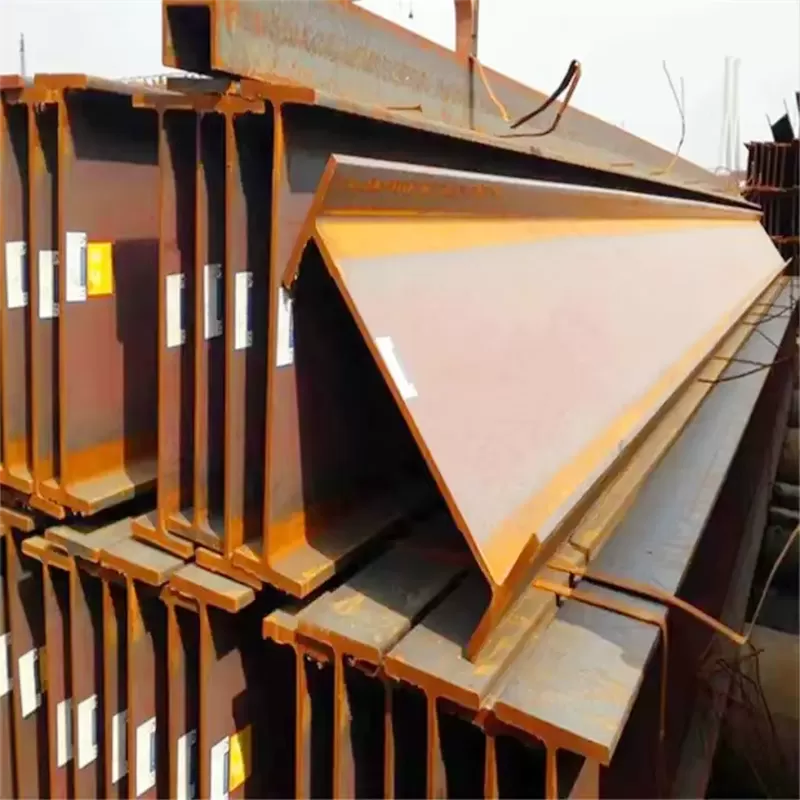

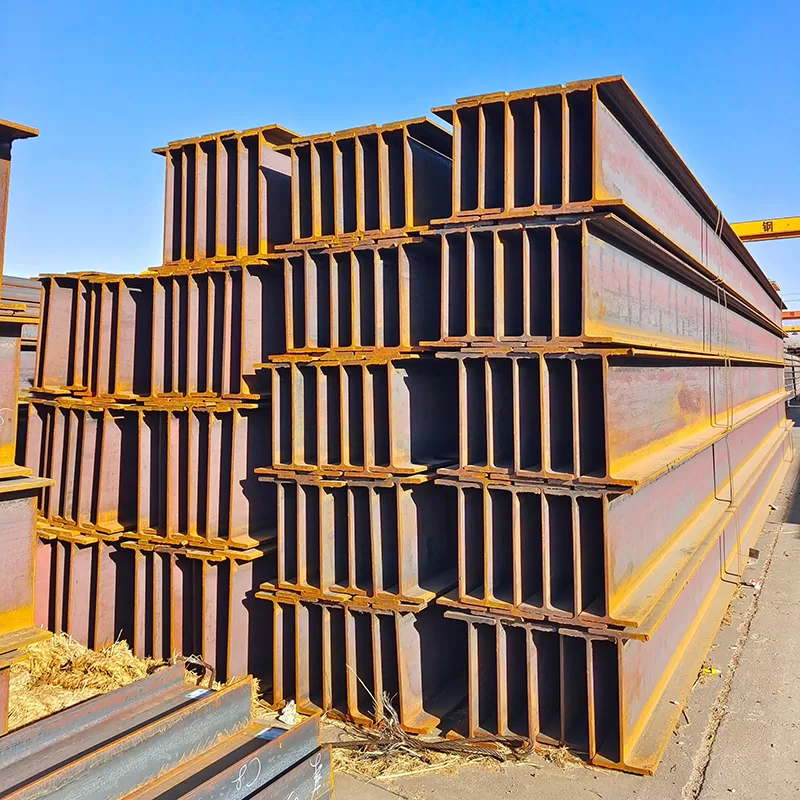

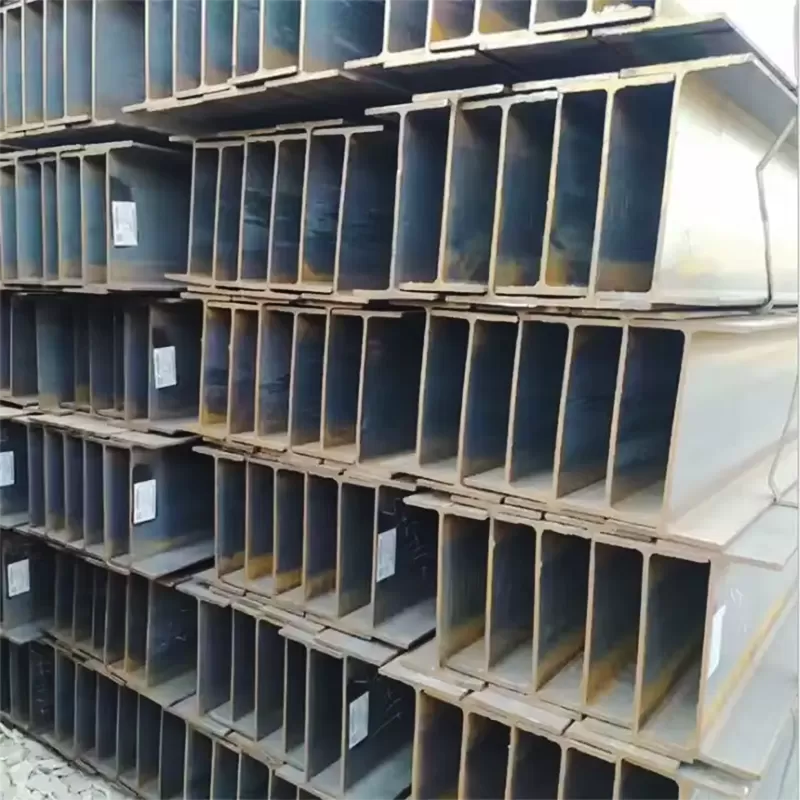

HEA HEB H-beam is a kind of structural steel beam, which has the advantages of high structural strength, good stability, convenient construction, material saving and recyclability. It is composed of flanges and webs. The flanges are wide and have a uniform thickness. The webs are perpendicular to the flanges, which gives H-beam steel a good bearing capacity in all directions.
| Standard | JIS / EN / ASTM / GB Standard |
| Sizes | Thickness: 0.2mm—2.0mm |
| Width: 762mm-1850mm |

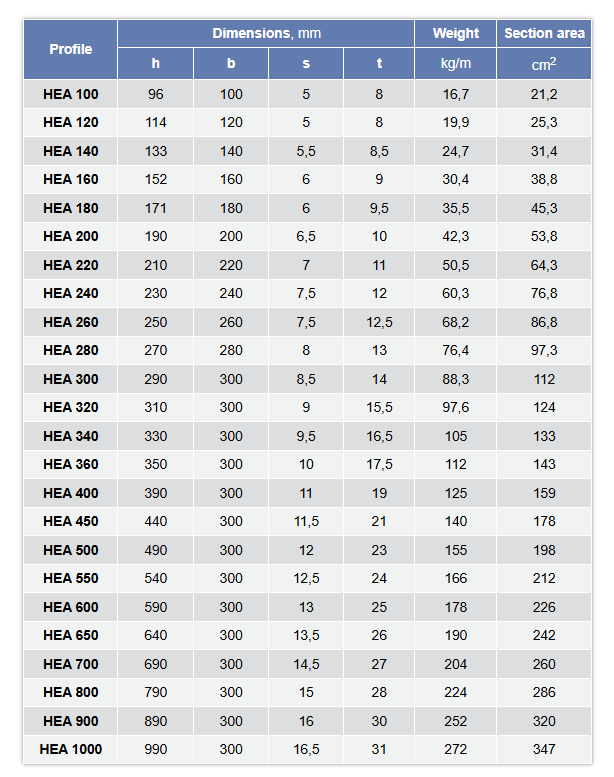

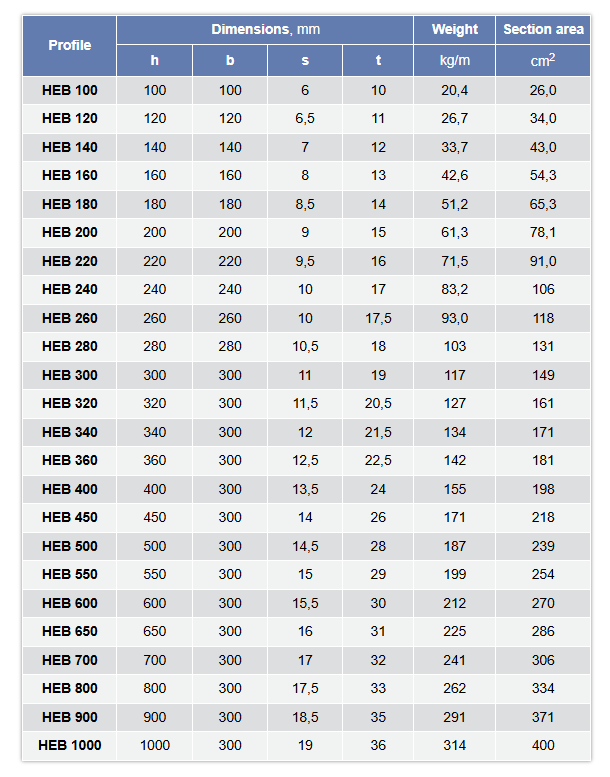

Parameter of HEA HEB H Beam
H-beam steel, a crucial category of structural steel beams, derives its name from the distinct capital “H”shape of its cross section. The two parallel flanges of H beam steel feature uniform thickness, and the inner surface of the flanges has no taper. Renowned for its cost - effectiveness, H beam steel is a highly versatile product that finds extensive application across a wide spectrum of structural projects.
Our company is a professional H beam supplier, offering a diverse range of H beam steel products for sale. These products are meticulously manufactured to meet the highest industry standards. Whether you are engaged in large - scale construction projects, industrial infrastructure development, or other related endeavors, our H - beam steel can provide reliable structural support.
If you are interested in our steel H beam or require more detailed information, please do not hesitate to contact us.
| Standard | JIS / ASTM / EN / BS / AS Standard |
| Grades | Q235, SS400, SS490, ASTM A36 / A572 Gr.50, DX52D / DX53D / S280GD / S320GD / S350GD, S235JR / S275JR / S355JR / S450J0, 250 / 300 / 350 / 400 |
| Sizes | HEA HEB HEM 100-1000 / HEAA 120-800 UB 203*102-686*254 / UC 152*152-358*368 / UP 203*203-356*368 |
| H Beam | H Beam | H Beam | |||||||||||||||
| H*B | T1 | T2 | W1 kg/m | W2 kg/m | H*B | T1 | T2 | WI kg/m | W2 kg/m | H*B | T1 | T2 | W1 kg/m | W2 kg/m | |||
| 100*100 | 6 | 8 | 16.9 | 17.2 | 300*300 | 10 | 15 | 93 | 94.5 | 450*200 | 9 | 14 | 77.9 | 79.5 | |||
| 125*125 | 6.5 | 9 | 23.6 | 23.8 | 300*305 | 15 | 15 | 105 | 106 | 450*300 | 11 | 18 | 121 | 124 | |||
| 150*75 | 5 | 7 | 14 | 14.3 | 346*174 | 6 | 9 | 41.2 | 41.8 | 500*150 | 10 | 16 | 75.6 | 77.1 | |||
| 150*100 | 6 | 9 | 20.7 | 21.4 | 350*250 | 9 | 14 | 78.1 | 79.7 | 496*199 | 9 | 14 | 77.9 | 79.5 | |||
| 150*150 | 7 | 10 | 31.1 | 31.9 | 344*348 | 10 | 16 | 113 | 115 | 500*200 | 10 | 16 | 88.2 | 89.6 | |||
| 175*90 | 5 | 8 | 18 | 18.2 | 350*350 | 12 | 19 | 135 | 137 | 506*201 | 1l | 19 | 102 | 103 | |||
| 175*175 | 7.5 | 11 | 40.4 | 40.4 | 400*150 | 8 | 13 | 55.2 | 55.8 | 482*300 | 11 | 15 | 111 | 115 | |||
| 200*100 | 5.5 | 8 | 20.9 | 21.7 | 396*199 | 7 | 11 | 56.1 | 56.7 | 488*300 | 1l | 18 | 125 | 129 | |||
| 200*150 | 6 | 9 | 29.9 | 31.2 | 400*200 | 8 | 13 | 65.4 | 66 | 596*199 | 10 | 15 | 92.5 | 95.1 | |||
| 200*200 | 8 | 12 | 49.9 | 50.5 | 390*300 | 10 | 16 | 105 | 107 | 600*200 | 11 | 17 | 103.4 | 106 | |||
| 200*204 | 12 | 12 | 56.2 | 56.7 | 388*402 | 15 | 15 | 140 | 141 | 606*201 | 12 | 20 | 118 | 120 | |||
| 248*124 | 5 | 8 | 25.1 | 25.8 | 394*398 | 11 | 18 | 147 | 147 | 582*300 | 12 | 17 | 133 | 137 | |||
| 244*175 | 7 | 11 | 43.6 | 44.1 | 400*400 | 13 | 21 | 172 | 172 | 588*300 | 12 | 20 | 147 | 151 | |||
| 250*250 | 9 | 14 | 71.8 | 72.4 | 400*408 | 21 | 21 | 197 | 197 | 594*302 | 114 | 23 | 170 | 175 | |||
| 250*255 | 14 | 14 | 81.6 | 82.2 | 414*405 | 18 | 28 | 232 | 233 | 692*300 | 13 | 20 | 163 | 166 | |||
| 298*149 | 5.5 | 8 | 32 | 32.6 | 428*407 | 20 | 35 | 283 | 284 | 700*300 | 13 | 24 | 182 | 185 | |||
| 300*150 | 6.5 | 9 | 36.7 | 37.3 | 450*150 | 9 | 14 | 63.9 | 65.5 | 800*300 | 14 | 26 | 207 | 210 | |||
| 294*200 | 8 | 12 | 55.8 | 57.3 | 446*199 | 8 | 12 | 65.1 | 66.7 | 900*300 | 16 | 28 | 240 | 243 | |||
| 294*302 | 12 | 12 | 83.4 | 85 | |||||||||||||
| Remark: H-waist height;B-Leg breadth;T1-waist thickness;T2-leg thickness W1-JIS standard weight;W2-GB standard weight | |||||||||||||||||
Features of HEA HEB H Beam
High material utilization rate and high cost-performance ratio.
Easy to cut and weld, and convenient for assembly and installation.
The flange width of the H-section steel is relatively large, which helps to improve stability.
It is highly strong and has strong bending resistance, and is widely used in building structures with large spans and industrial plant structures.
