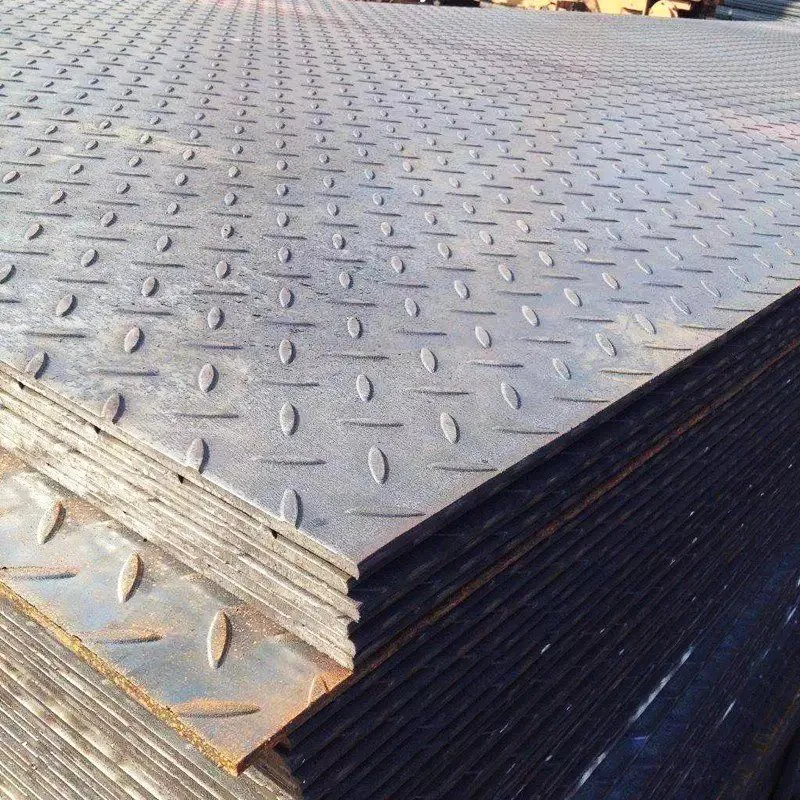

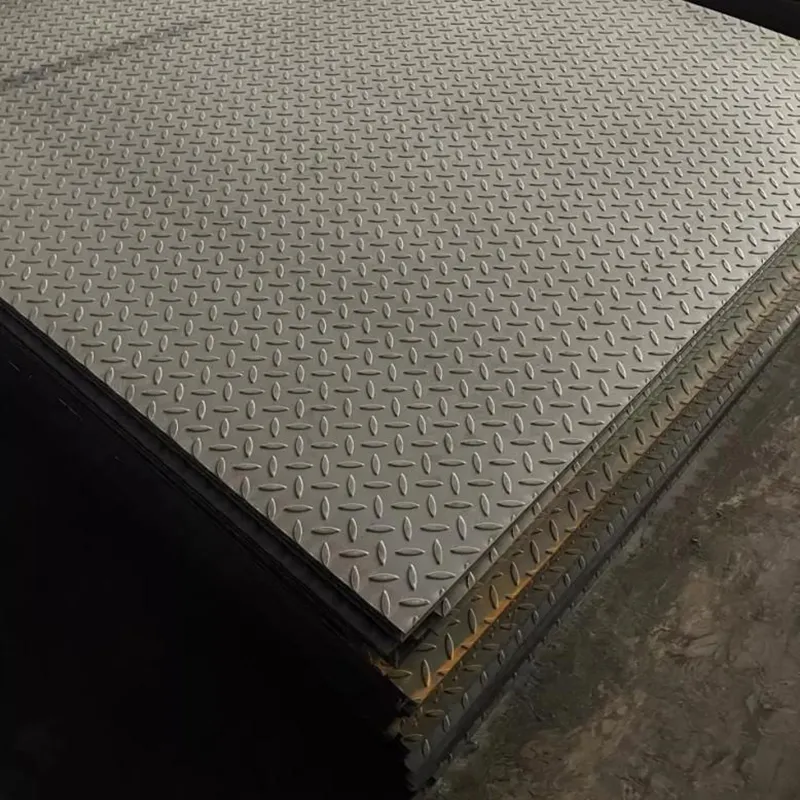

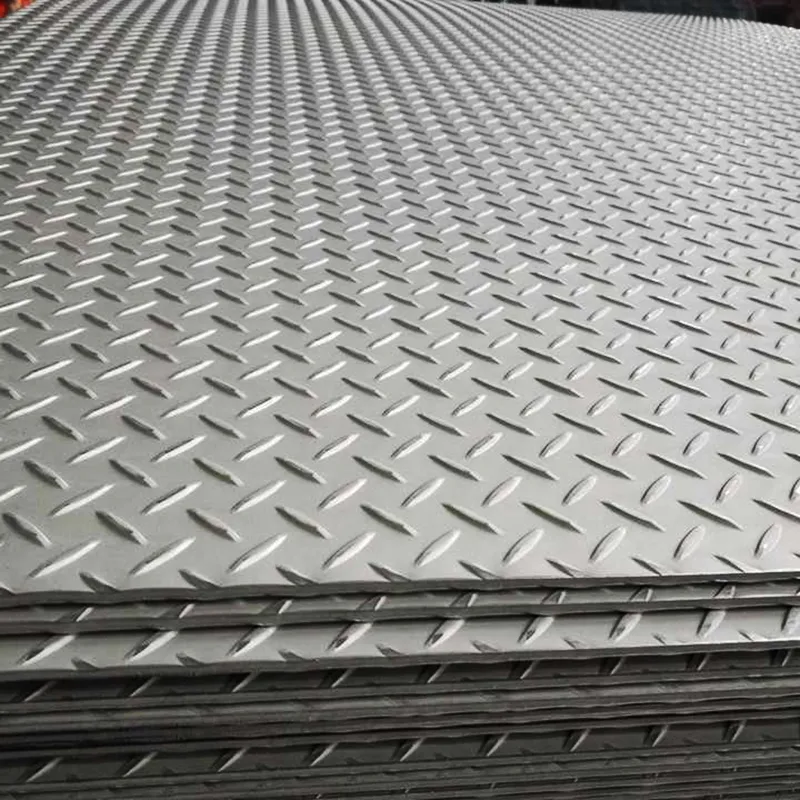

Mild Steel Checkered Plate, simplified as MS Checked plate, also known as Mild Steel Diamond plate, is a type of metal sheets with a regular pattern of raised diamonds or lines made of hot rolled mild steel materials.
TIANJIN MUCHANG offers high-quality steel checkered plates that are slip-resistant and durable, making them ideal for various industrial, commercial, and residential applications. Our plates are available in various thicknesses, widths, lengths, and materials, including mild steel, galvanized steel, making them versatile and easy to work with.
| Standard | ASTM,DIN,JIS,BS,GB/T Standard |
| Grades | Q235B, Q345, A36, S235JR/S235/S335JR/S335, SS400/SS440/SM400A/SM400B etc. |
| Thickness | 2mm-8mm |
| Width | 600mm-1800mm |
| Length | 2m-12m or according to customer's special request |
Parameter of Ms Carbon Steel Checkered Plate

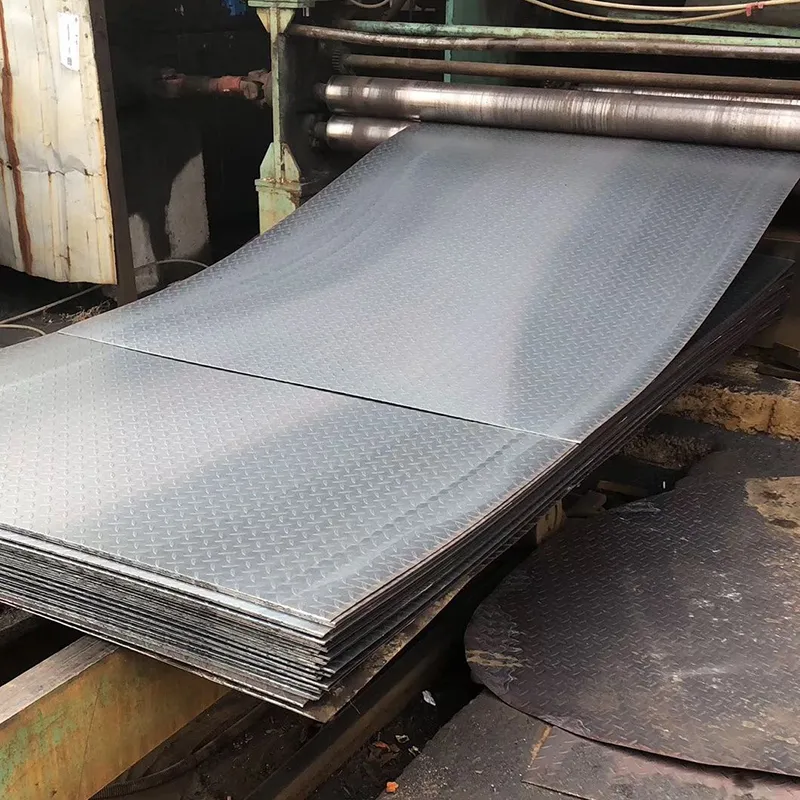

Hot-rolled chequered plates are steel products with specific patterns formed on the surface through the hot rolling process. The patterns are diverse, with common ones including lenticular, diamond shaped, round bean shaped, and mixed shapes of flat round. Among them, the lenticular pattern is the most common in the market.
Ms Carbon Steel Checkered Plate is a high-quality board that combines excellent performance and diverse uses, with outstanding performance in many fields.
The Ms checkered plate is manufactured using advanced hot - rolling technology. High - quality steel is selected as the raw material, ensuring that it has high strength and good toughness. Under strict production standards and quality control systems, TIANJIN MUCHANG each Ms checkered plate has stable and reliable performance, guaranteeing high - quality products from the source.
| Standard | ASTM,DIN,JIS,BS,GB/T Standard |
| Grades | Q235B, Q345, A36, S235JR/S235/S335JR/S335, SS400/SS440/SM400A/SM400B etc. |
| Thickness | 2mm-8mm |
| Width | 600mm-1800mm |
| Length | 2m-12m or according to customer's special request |
| Tolerance | Thickness: +/-0.02mm, Width:+/-2mm |
| surface | Decorative pattern into tear, diamond, round bean shaped, mixed oval shape |
| Certificate | ISO,CE, SGS,BV,BIS |
| Package | Tied up with steel strips and wrapped with water proof paper |
| Application Range | Widely used in transportation, construction, decoration, equipment around the base plate, machinery, shipbuilding and other fields |
| Advantages |
|
The Ms checkered plate offers a wide range of specification options.
The thickness usually ranges from 2.0mm to 8.0mm, the width is from 600mm to 1800mm, and the length can be customized according to customer requirements, ranging from 2000mm to 12000mm.
In addition, we can also provide personalized customization services according to customers' special requirements.
Whether it is a special pattern design or special size specifications, we can meet the diverse needs of customers.
Industrial Field
In areas such as factory workshop floors, operation platforms, and crane runways, the Ms checkered plate can withstand the frequent rolling of heavy machinery and the collisions of various tools. At the same time, with its anti - slip performance, it ensures the safety of workers during the operation process. In addition, for some equipment components with high wear resistance requirements, such as the chutes of mining equipment and the reaction kettle platforms of chemical equipment, the Ms checkered plate can also play an excellent role in extending the service life of the equipment.
Construction Field
In construction projects, the Ms checkered plate is often used in parts such as stair treads, ramps, and platforms, providing safety guarantees for people's daily walking. Its beautiful pattern design can also add a unique decorative effect to the building, making the building more hierarchical and modern. Meanwhile, in some lightweight building structures, the Ms checkered plate can be used as roof panels, which not only meets the requirements of waterproof and anti-slip, but also reduces the overall weight of the building.
Transportation Field
In the manufacturing of automobiles, trains, ships and other transportation vehicles, the Ms checkered plate is also widely used. For example, using the Ms checkered plate in parts such as automobile carriage floors, train carriage passages, and ship decks can effectively prevent people from slipping during the driving process and improve the safety of transportation vehicles.
The surface of the Ms checkered plate is smooth, and daily cleaning and maintenance are very simple.
Just regular simple cleaning and wiping can maintain its good appearance and performance.
Moreover, due to its long service life and stable performance, it can effectively reduce maintenance costs and replacement costs during long - term use.
It has a very high cost - performance ratio and is an ideal choice for various projects.
Features of Ms Carbon Steel Checkered Plate
The patterns on the surface significantly increase the friction. On wet, oily, or inclined surfaces, it can effectively prevent people from slipping and objects from sliding.
The hot-rolling process refines and optimizes the grains inside the steel, making the structure more compact, thus improving the strength, toughness, and wear resistance of the steel plate.
The diverse patterns give the hot - rolled chequered plates a unique appearance, providing more choices for designs in the construction, decoration, and other fields.
It can be processed by various operations such as cutting, bending, welding, and stamping, which is convenient for installation and use in different engineering projects.
In some occasions where the strength requirements are not extremely high but anti-slip and wear resistant properties are needed, using chequered plates can reduce the amount of steel used compared to ordinary flat plates while ensuring the performance, thus achieving cost-savings.
