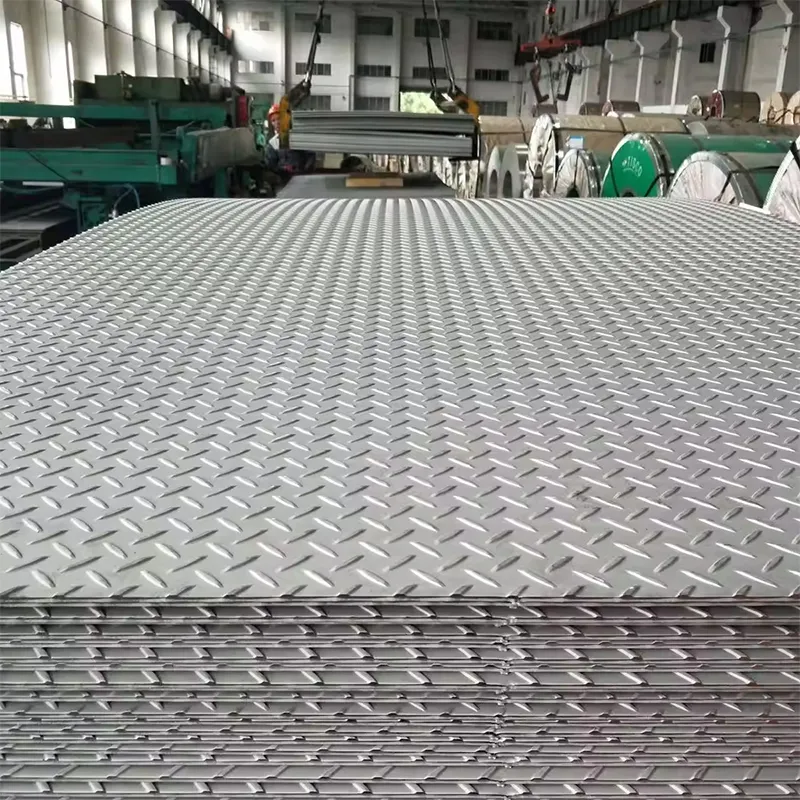

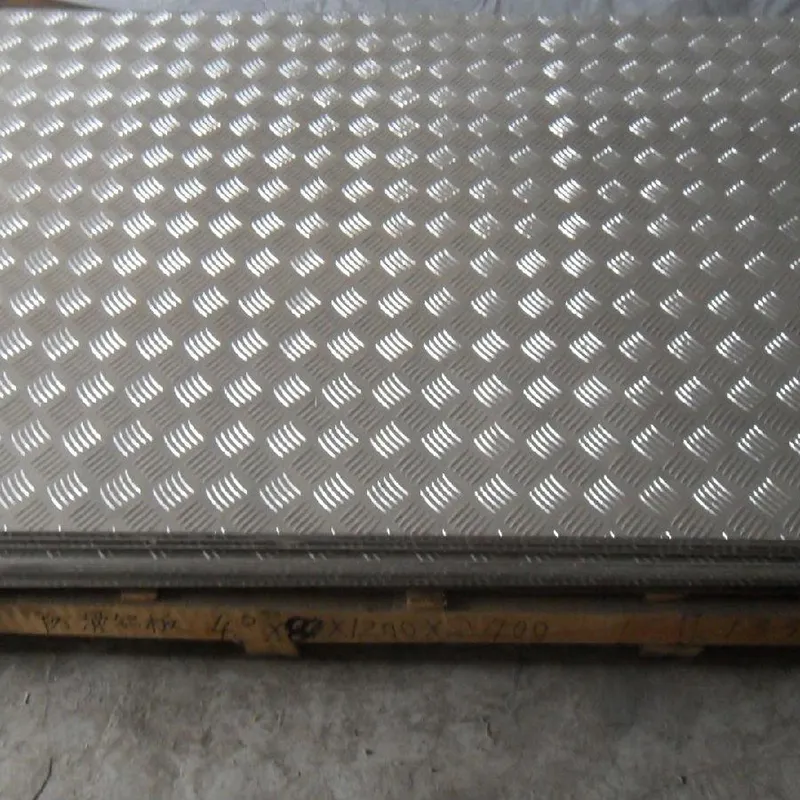

Diamond plate sheet is one special steel section, also known as tread plate or carbon steel floor plate, is rolled to produce raised diamond-shaped marks on one side, like Geometric figure, bean, round bean, round-flat shape, widely used in industry construction.
This raised or elevated pattern offers increased traction and protection in a variety of applications. Like other steel products, the thickness or gauge of the steel floor plate helps determine its application and use.
| Standard | AISI, ASTM, BS, DIN, GB, JIS Standard |
| Grades | Q195-Q420 Series, SS400-SS540 Series,S235JR-S355JR Series,ST Series, A36-A992 Series,Gr50 Series. |
| Thickness | 2mm-8mm |
| Width | 600mm-1800mm |
| Length | 2m-12m or according to customer's special request |
Parameter of Diamond Checker Plate Sheet
Carbon steel floor plate, also known as tread plate or diamond plate, is rolled to produce raised diamond-shaped marks on one side. This raised or elevated pattern offers increased traction and protection in a variety of applications. Like other steel products, the thickness or gauge of the steel floor plate helps determine its application and use.
At TIANJIN MUCHANG, we have prime diamond floor plate for sale in all sizes and gauges. Whether you need large order of a standard size, we can quickly fulfill your order with short lead times.

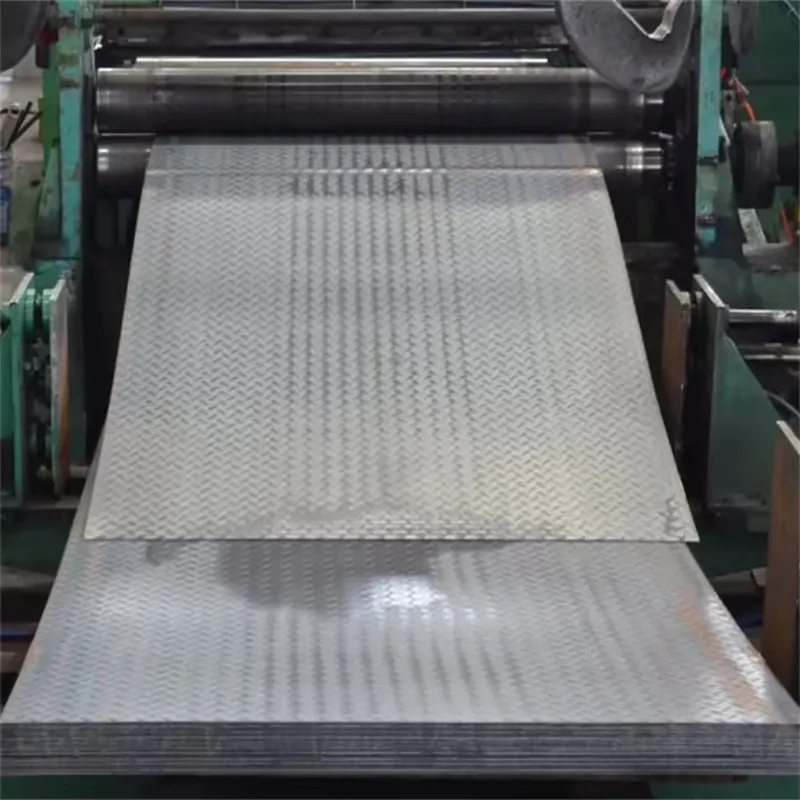

Our factory uses high-quality steel and undergoes strict screening and testing to ensure excellent basic performance of the sheet metal. Adopting advanced hot rolling technology, the diamond shaped mold and plate are perfectly integrated under high temperature and high pressure, not only with clear patterns, but also with strengthened overall structure and more stable performance.
| Standard | AISI, ASTM, BS, DIN, GB, JIS Standard |
| Grades | Q195-Q420 Series, SS400-SS540 Series, S235JR-S355JR Series, ST Series, A36-A992 Series, Gr50 Series, etc. |
| Thickness | 2mm-8mm |
| Width | 600mm-1800mm |
| Length | 2m-12m or according to customer's special request |
| surface | Decorative pattern into tear, diamond, round bean shaped, mixed oval shape |

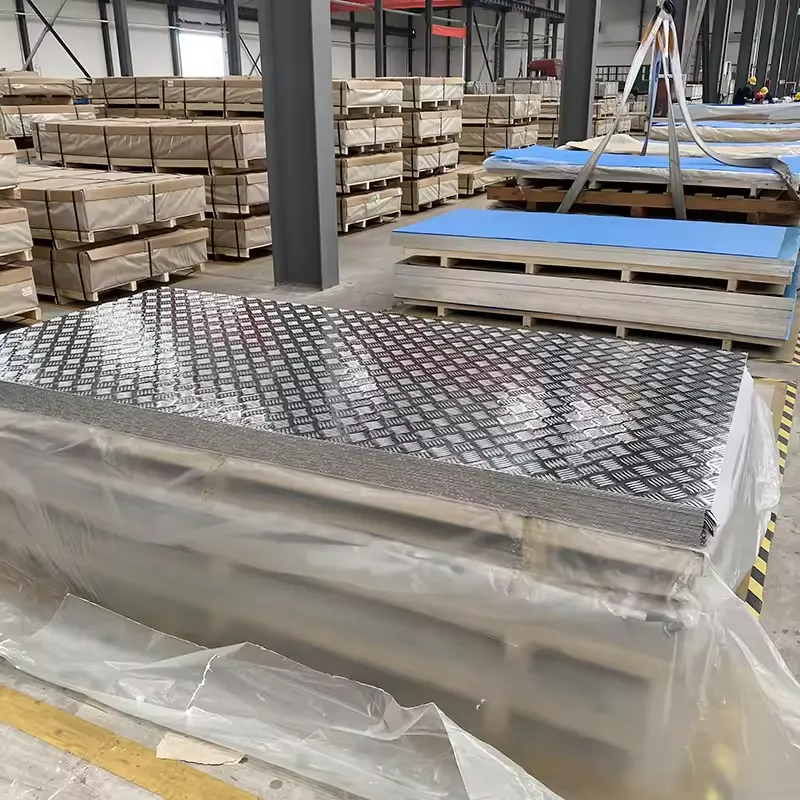

| Package | Tied up with steel strips and wrapped with water proof paper |
| Application Range | Widely used in transportation, construction, decoration, equipment around the base plate, machinery, shipbuilding and other fields |
The conventional thicknesses are 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, and 8mm.
The thickness tolerance is controlled between ±0.1mm - ±0.3mm, and the specific tolerance is determined according to different thickness specifications to ensure accurate thickness and meet the requirements of various load - bearing and usage scenarios.
The common widths are 600mm, 900mm, 1200mm, 1500mm, and 1800mm.
The width tolerance is maintained within ±5mm to ensure the accuracy during plate splicing and installation.
The standard length can be customized according to customer needs, ranging from 2000mm to 12000mm.
The length tolerance is controlled within ±10mm, which is convenient for customers to use flexibly in different projects and reduces material waste.
It is used for stair treads, corridor floors, and outdoor terraces in commercial buildings, being both anti - slip and aesthetically pleasing. In industrial buildings, it serves as the material for factory floors and operation platforms, bearing heavy pressure and being anti - slip and wear - resistant.
It is commonly used in factory workshop operation platforms, crane tracks, equipment protective fences, and conveyor belt rollers, etc., ensuring the stable operation of equipment and improving production efficiency.
It is applied to the floors of automobile carriages, the steps and luggage compartments of buses, the decks, cabin passages, and stairs of ships, as well as the floors of train carriages and the edges of platforms, ensuring travel safety.
Features of Diamond Checker Plate Sheet
The diamond - shaped concave - convex patterns greatly increase the friction coefficient. According to tests, the anti - slip coefficient is increased by [X]% compared with ordinary flat plates. It can effectively prevent slipping in environments with water, oil, or slopes, ensuring safety.
The combination of high - quality steel and the hot - rolling process endows the plate with high strength and excellent wear resistance. It can withstand a heavy pressure of [X] tons without deformation. Under long - term friction and impact, the wear rate is low, and the service life is extended by [X] times, reducing maintenance costs.
Through treatments such as hot - dip galvanizing, aluminum - zinc plating, or high - performance anti - corrosion coatings, it has good corrosion resistance and can be used for a long time in corrosive environments such as acid, alkali, and salt.
