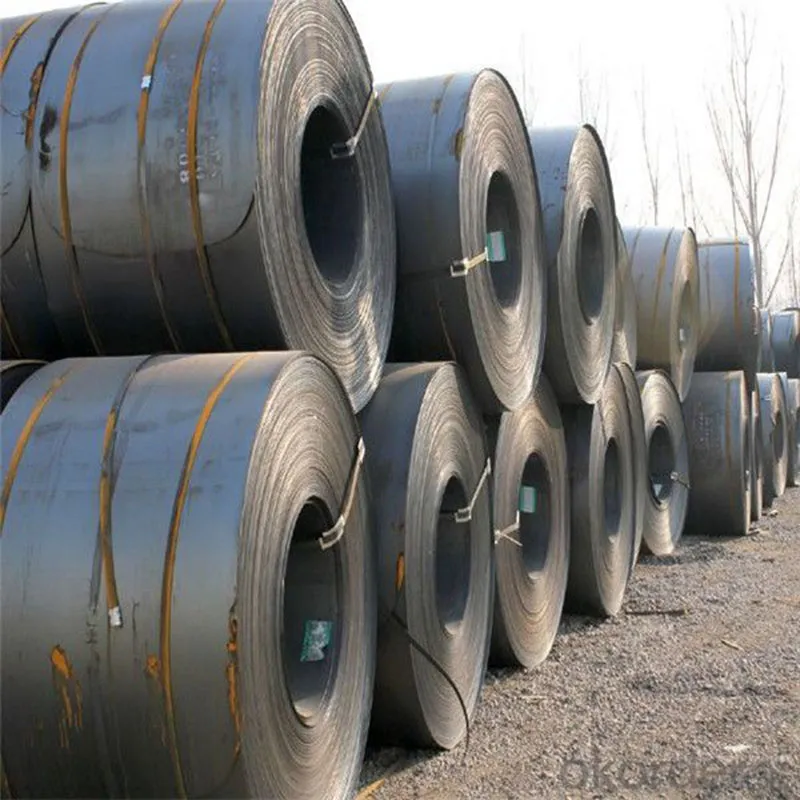

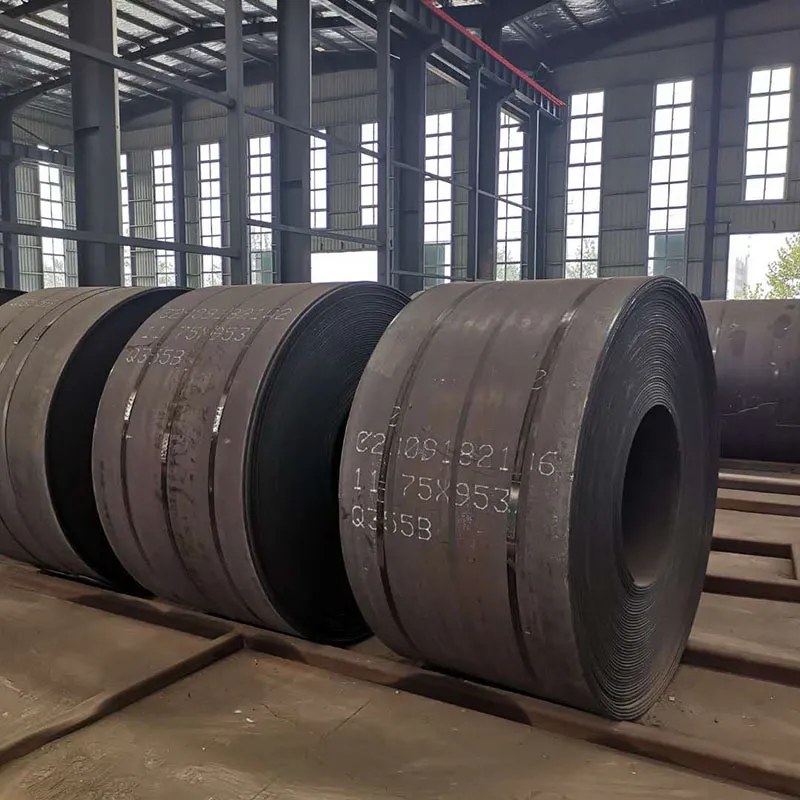

A36 hot-rolled steel coils are highly versatile low-carbon steel products. They achieve an excellent balance between strength and toughness, enabling them to effectively handle various working conditions. With a superior surface quality, they are easy to process through operations such as cutting, welding, and stamping. They are widely used in fields like building structural components, automotive parts, and machinery manufacturing, and are practical and efficient basic materials in industrial production.
| Standard | JIS / EN / ASTM / GB Standard |
| Sizes | Thickness: 1.5mm-25mm |
| Width: 1250mm-2500mm or be customized |
Parameter of A36 Hot Rolled Carbon Steel Coils
A36 Hot Rolled Carbon Steel Coils are widely used in various industries due to their excellent mechanical properties and versatility. These coils are made from carbon steel, which is known for its high strength and durability. A36 is a specific grade of carbon steel that meets the ASTM A36/A36M standard, making it suitable for a wide range of applications.
Hot rolled ASTM steel plate A36 is a carbon structural steel plate, also known as ordinary carbon steel plate. It has high tensile strength and yield strength, good toughness, and can be processed into various types of steel. Hot rolled American standard steel plate A36 is generally used in fields such as structural steel, bridges, ships, coal mines, and machinery manufacturing. At present, this type of steel plate is also widely sold in China.
| Characteristics | Details |
|---|---|
| Chemical Composition | Carbon (C) ≤ 0.25%; Silicon (Si) ≤ 0.40%; Manganese (Mn) 0.80% - 1.20%; Phosphorus (P) ≤ 0.04%; Sulfur (S) ≤ 0.05%; Copper (Cu) ≥ 0.20% (when copper-containing steel is specified) |
| Mechanical Properties | Yield strength ≥ 250MPa; Tensile strength 400 - 550MPa; Elongation after fracture ≥ 20% |
| Dimensional Specifications | Thickness: 1.5 - 25mm; Width: 1250 - 2500mm; Common coil diameters: 508mm or 610mm (customizable) |
| Processability | Easy to cut, weld, bend, drill, mill, etc. |
| Surface Quality | Harmful defects such as cracks, bubbles, scabs, folds, and inclusions are not allowed; There is no delamination on the side; Surface defects are allowed to be cleaned according to the standard and ensure the minimum thickness |
Raw material selection: High-quality low-carbon steel (e.g., Q235 steel) is chosen as the primary raw material.
Heating: Steel billets are heated to high temperatures, typically between 1200°C and 1300°C, to ensure material plasticity.
Hot rolling: Heated steel billets are processed through rolling mills to form the desired flat bar shape. During rolling, the steel's grains are rearranged, improving its mechanical properties.
Cooling: Hot-rolled steel is naturally cooled on cooling beds. Cooling rates are controlled to ensure appropriate hardness and toughness.
Cutting and straightening: After cooling, the flat bars are cut to specified lengths and straightened to ensure linearity.
Surface treatment: Depending on customer requirements, A36 hot rolled flat bars may undergo surface treatments such as pickling, oiling, or galvanizing to prevent oxidation and corrosion.
| Size | Length | Weight (lbs/ft) |
| 1/8" x 1/2" | 240.00" | 0.213 |
| 1/8" x 5/8" | 240.00" | 0.266 |
| 1/8" x 3/4" | 240.00" | 0.319 |
| 1/8" x 3/4" | 240.00" | 0.372 |
| 1/8" x 1" | 240.00" | 0.425 |
| 1/8" x 1-1/4" | 240.00" | 0.531 |
| 1/8" x 1-1/2" | 240.00" | 0.638 |
| 1/8" x 1-3/4" | 240.00" | 0.744 |
| 1/8" x 2" | 240.00" | 0.850 |
| 1/8" x 2-1/2" | 240.00" | 1.060 |
| 1/8" x 3" | 240.00" | 1.280 |
| 1/8" x 3-1/2" | 240.00" | 1.490 |
| 1/8" x 4" | 240.00" | 1.700 |
| 1/8" x 4-1/2" | 240.00" | 1.913 |
| 1/8" x 5" | 240.00" | 2.125 |
| 1/8" x 6" | 240.00" | 2.550 |
| 1/8" x 8" | 240.00" | 3.333 |
| 1/8" x 10" | 240.00" | 4.250 |
| 1/8" x 12" | 240.00" | 5.000 |
| 3/16" x 1/2" | 240.00" | 0.319 |
Construction Field: A36 hot - rolled steel is used in building structural frameworks, roofing and wall materials to withstand various loads and meet the requirements of building functions and appearance.
Machinery Manufacturing Field: A36 hot - rolled steel can be used to manufacture basic mechanical parts, casings and protective devices, meeting the requirements of high - precision machinery and safety protection.
Automotive Manufacturing Field: A36 hot - rolled steel is applied to the manufacturing of automotive body structural parts and components, ensuring the safety performance and long - term stable operation of vehicles.
Energy Field: A36 hot - rolled steel is used for the support of oil and gas pipelines and the manufacturing of boilers and pressure vessels. It can adapt to complex working conditions and ensure the safety of energy equipment.
Shipbuilding Field: A36 hot - rolled steel is used in the manufacturing of ship hull structures and ship equipment. It can withstand various forces in the marine environment and guarantee the performance of ships.
Features of A36 Hot Rolled Carbon Steel Coils
High quality low carbon steel (such as Q235 steel) is selected as the main raw material.
Steel billets are heated to high temperatures, generally between 1200°C and 1300°C, to ensure the plasticity of the material.
The heated steel billets are processed by rolling mills to form the desired flat - bar shape. During the rolling process, the grains of the steel are re - arranged, which improves its mechanical properties.
The hot rolled steel is cooled naturally on cooling beds. The cooling rate is controlled to ensure the appropriate hardness and toughness.
After cooling, the flat bars are cut to the specified lengths and then straightened to ensure straightness.
According to customer requirements, A36 hot rolled flat bars may be subjected to surface treatments like pickling, oiling, or galvanizing to prevent oxidation and corrosion.
