In large-scale buildings, bridges, and heavy machinery manufacturing, heavy H beams have become indispensable structural materials due to their outstanding bearing capacity and stability.

So, what is a heavy H-beam? What are its unique advantages? How to choose the suitable heavy-duty H-beam?

This article will comprehensively analyze the characteristics, application scenarios, and purchasing skills of heavy H beams for you, helping you better understand and use this high-performance steel.

 I. What is Hot Rolled Heavy H beam?

Heavy H beam is a type of H-beam with larger cross-sectional dimensions, wide flanges, and thick webs. It is mainly used in high-load and large-span buildings and engineering structures. Its cross-sectional shape resembles the letter "H" and has excellent bending and compressive resistance properties.

II. Characteristics of Heavy H beams

• High load-bearing capacity: With wide flanges and thick webs, it can withstand greater loads.

• Strong stability: The section design is reasonable, and the bending and compressive resistance performances are balanced.


• Convenient for construction: Easy to cut, weld and install, improving the construction efficiency.


• Long service life: After anti-corrosion treatment, it has excellent weather resistance and durability.

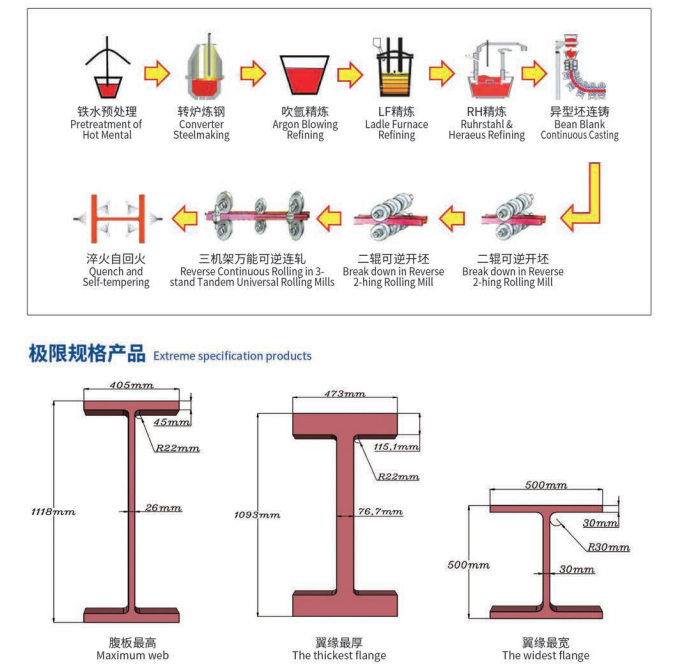

 III. Jumbo H-beam Production Line

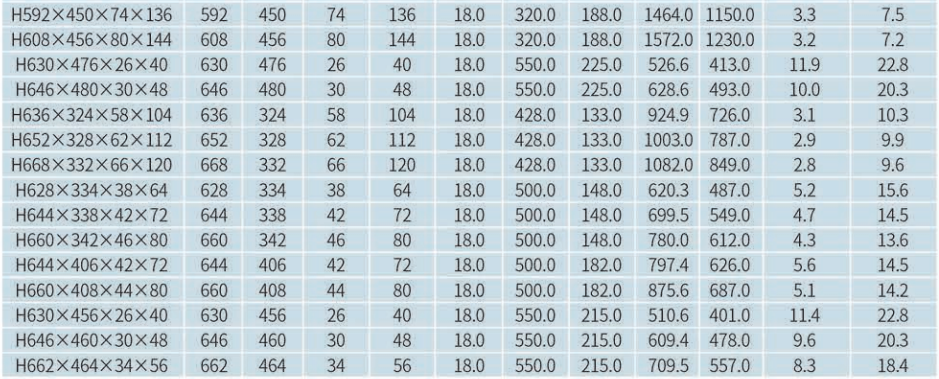

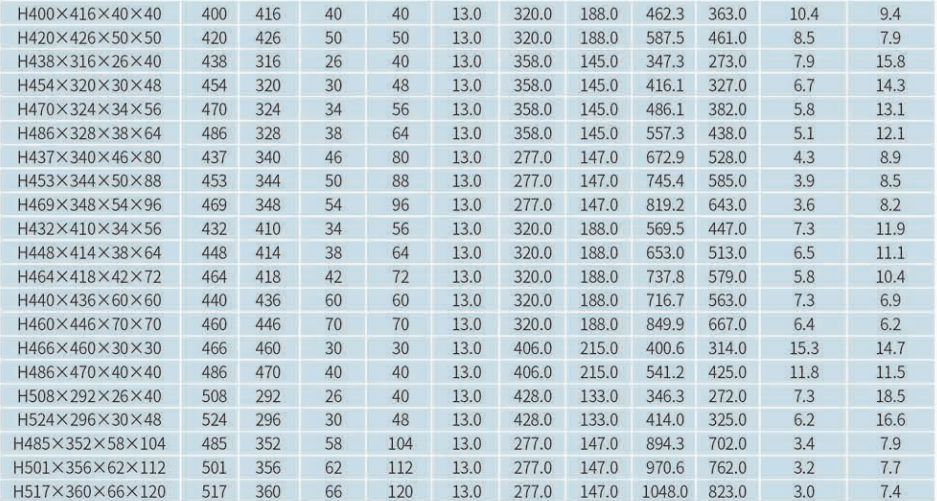

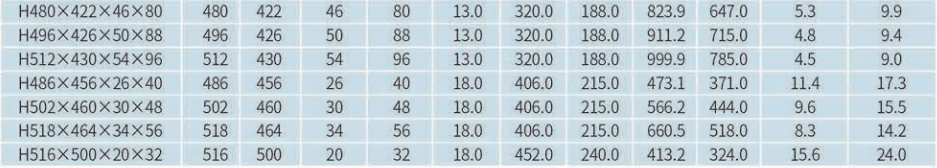

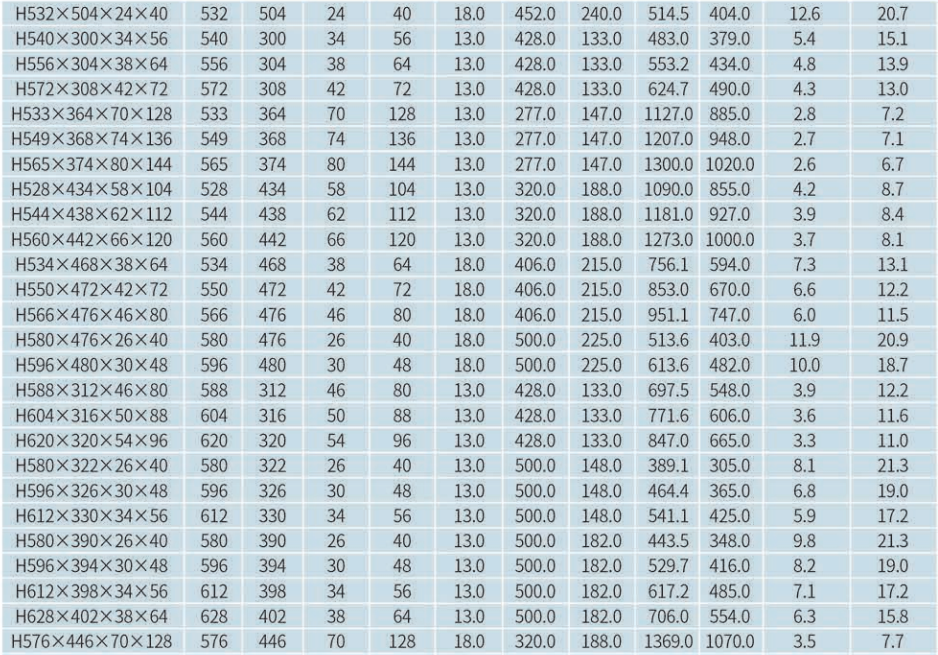

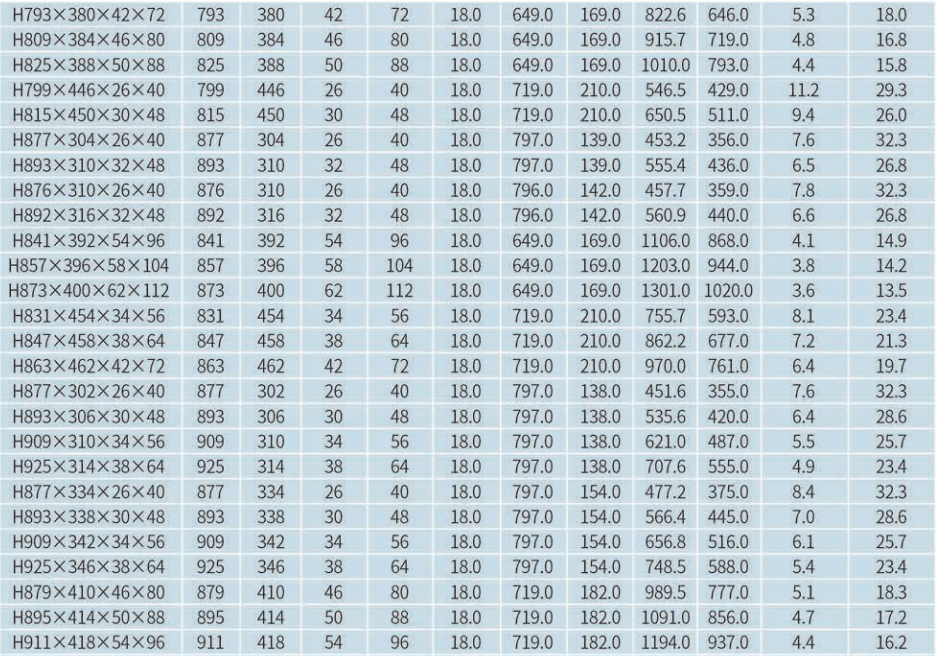

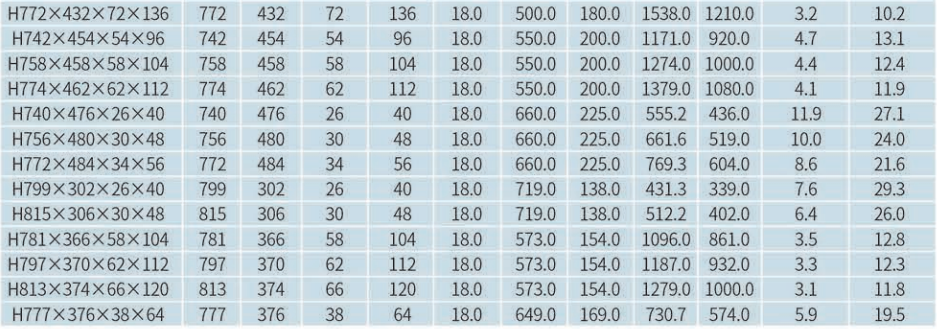

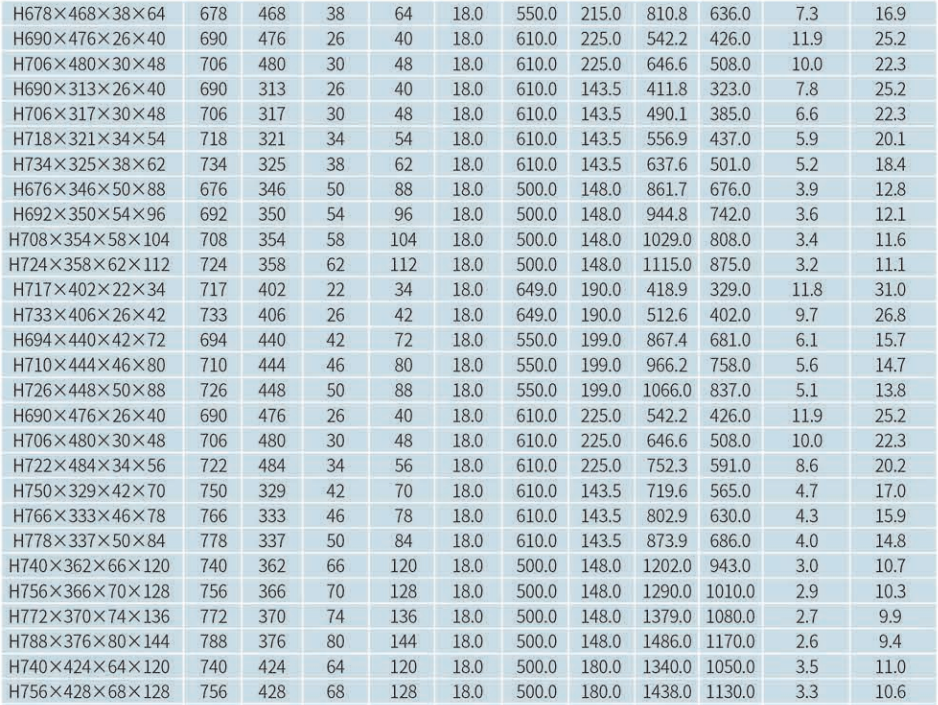

IV. Hot Rolled Heavy H Beam specifications table

 V. How to Choose Heavy H Beam

According to the project requirements:

Determine the required load-bearing capacity and span, and select the appropriate specification and model.

Pay attention to specifications and models:

Common heavy H beam models include HW400×400, HW500×500, etc.

Check quality certifications:

Choose steels with quality certifications, such as ISO9001, CE certification, etc.

Consult professionals:

If you are not sure which specification is more suitable, you can consult engineers or suppliers.
