What Is an I Beam and What Are Its 3 Advantages?

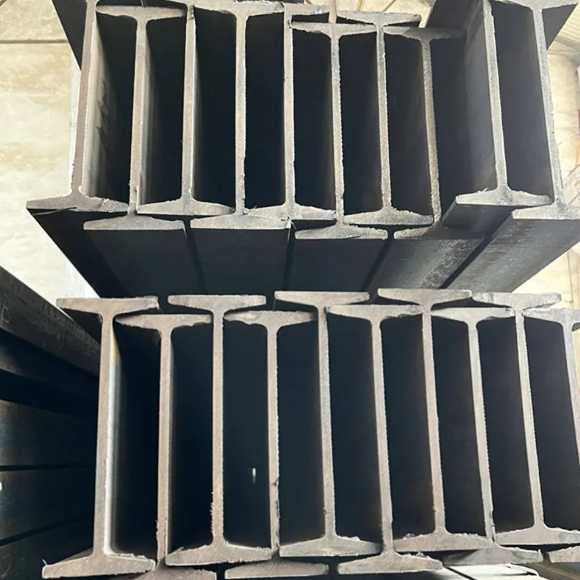

I beam is a shape of structural steel used in buildings and it is also known as H, W, wide, universal beam, or rolled joist. They are designed to play a key role as a support member in structures. These beams have the capacity to withstand various types of loads.

It is named for its cross-sectional shape, which resembles the letter "I." These beams are commonly used to construct beams and columns in various sizes and specifications. For civil engineers and foremen, understanding the significance of I-beams in steel structures is essential.

Design of an I-Beam

An I-beam is designed with two extended horizontal planes, called flanges, connected by a vertical component known as the web. This structural member forms an I- or H-shaped cross-section. While steel is the most common material, I-beams are also manufactured from aluminum alloys and low-alloy steels for applications such as bridges and building frameworks.

I-beams come in various dimensions, thicknesses, and widths to suit different structural needs. They are classified based on material type and size. For example, an I-beam with a 12-inch depth and a weight of 20 pounds per foot is designated as 12×20. Contractors choose beam specifications based on project requirements, considering the following key factors:

- Deflection – The beam thickness should be sufficient to minimize deflection under load.

- Vibration – Stiffness and mass must be optimized to reduce unwanted vibrations.

- Bending – The beam must be strong enough to resist yield stresses and prevent bending.

- Buckling – Torsional stresses can cause buckling; selecting the right flange design helps mitigate this risk.

- Tension – Choosing an appropriate web thickness prevents rippling or buckling under tension.

I-beams are engineered to bend rather than buckle under heavy loads. Their density is non-uniform, with higher-density regions near the axial fibers to counteract peak stress points. Beams with smaller cross-sectional areas are often preferred, as they reduce material usage while maintaining structural integrity.

Structural Beam Design

All structural beams share a fundamental design consisting of flanges (also known as legs) and a web (the long vertical section). The fillet is the angled connection between the web and the flanges.

The flat flanges at the top and bottom of the beam help prevent bending, while the web resists shear and blunt forces. These components are engineered to support high bearing loads with minimal material usage, optimizing strength and efficiency.

Each beam is defined by three key dimensions:

- Depth – The vertical distance from the top flange to the bottom flange.

- Width – The horizontal length of the flanges.

- Thickness – The measurement of both the web and the flanges.

This design ensures structural stability while maximizing material efficiency, making beams an essential component in construction and engineering.

Types of I-Beams

Although many structural beams share an I-shaped cross-section, there are key differences among I-beams, H-piles, Universal Beams (UB), W-beams, and wide flange beams. While the term "universal" suggests broad applicability, each type has distinct characteristics suited for specific applications.

- I-Beams – These beams have parallel flanges, sometimes with a tapered design. Their legs are narrower than those of H-piles and W-beams, making them lighter and limiting their load-bearing capacity. I-beams are typically available in shorter lengths (up to 100 feet), compared to H-piles and W-beams, which can extend up to 330 feet. I-beams are also classified as S-beams.

- H-Piles – Also known as bearing piles, these beams closely resemble I-beams but are heavier and designed to withstand greater vertical loads. Unlike I-beams, H-piles have equal thickness across all sections and wider legs, providing greater structural stability. H-piles fall under the category of wide flange beams.

- W-Beams / Wide Flange Beams – Similar to H-piles, W-beams have wider legs than standard I-beams. However, unlike H-piles, their web and flange thicknesses are not necessarily uniform. This design allows for greater flexibility in construction applications.

Each beam type serves a specific structural purpose, ensuring optimal performance based on load-bearing requirements and design constraints.

Where Are I-Beams Used?

I-beams are widely utilized in various steel construction applications, primarily serving as frames and critical support elements. Their strength and durability help create stable structures while reducing the need for excessive support components, making them an economically efficient choice. Due to their versatility and reliability, I-beams are indispensable for contractors and engineers alike.

One of the key advantages of I-beams is their functionality in construction projects. Their unidirectional bending behavior makes them uniquely effective—the web component resists shear stresses, while the flanges counteract bending forces. This design enables I-beams to handle substantial loads without buckling. Additionally, their I-shaped structure optimizes material usage, requiring less steel without compromising strength, making them a cost-effective solution.

Thanks to their adaptability across different structural applications, I-beams are commonly referred to as “universal beams.” There is always a suitable I-beam type available for any construction scenario, further solidifying their reputation as a fundamental element in modern engineering.
