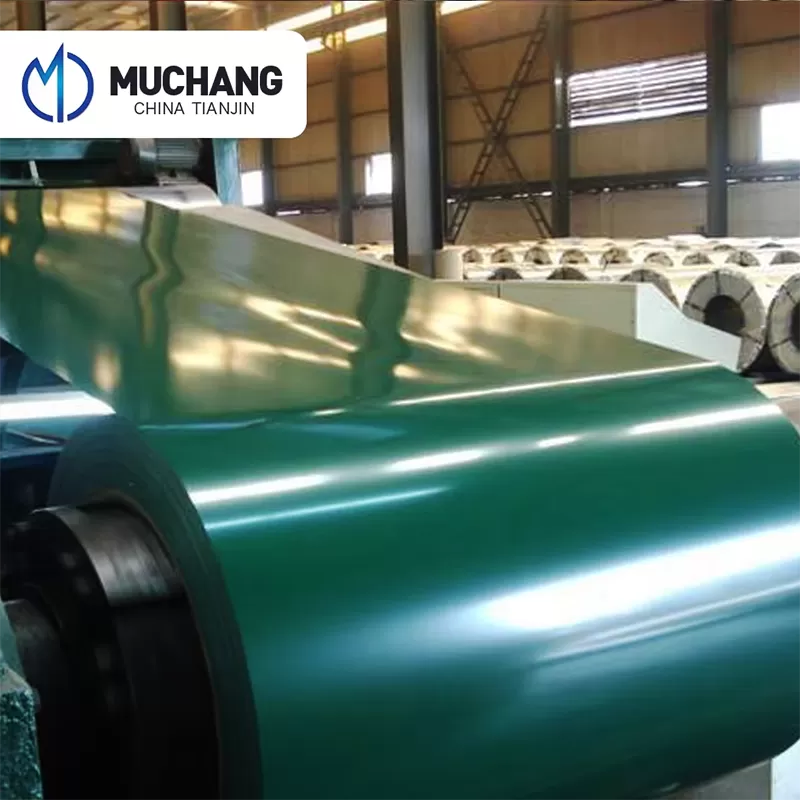

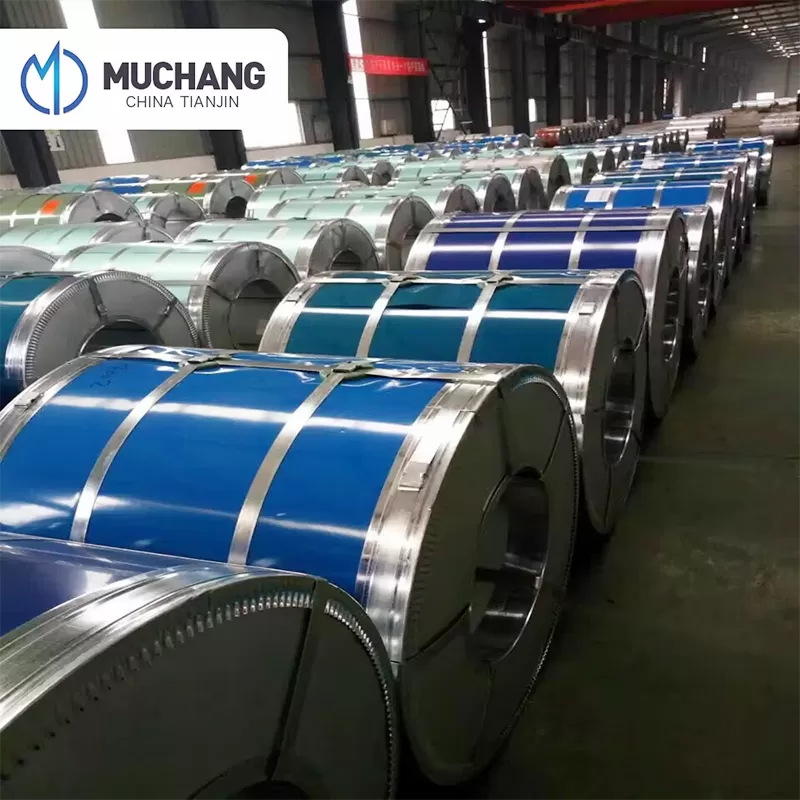

Pre-Painted Galvalume Steel Coil

Pre-painted galvalume steel coil (PPGL COIL) and PPGI are products made from cold rolled steel plates and galvanized steel plates through a series of processes, including surface pretreatment (degreasing, cleaning, chemical conversion), continuous coating (roller coating), baking and cooling.PPGL coils color coated steel coil have the characteristics of lightweight, beautiful and generous appearance, good anti-corrosion performance, and can be directly processed.

Standard	JIS / EN / ASTM Standard
Sizes	Thickness: 0.2mm-1.5mm
Sizes	Width: 800mm-1250mm

Inquire Now Next Product

Parameter of Pre-Painted Galvlume Steel Coil

Standard	JIS / EN / ASTM Standard
Grades	SGCC / DX51D / S250G DX52D / DX53D / S280GD / S320GD / S350GDD
Base plate	Z20-Z275,AZ30-AZ150
Painting thickness	Top side: 10-20 microns Primer: 5-7 microns Back side: 5-7 microns
Spangle	Regular Spangle /Minimized spangle / Zero spangle
Sizes	Thickness: 0.2mm - 1.5mm Width: 800mm,914mm,1000mm,1200mm,1250mm or other width
Color	RAL color system or as per buyer’s color sample
Coil weight	3tons to 8tons
Inner diameter	508mm,610mm
Packing	Standard export packing,or as customer demands

Features of Pre-Painted Galvlume Steel Coil

Superior dimensional tolerances as well as surface finishes.
High quality color coated steel coil coating has good weather resistance and can be used in facilities exposed to outdoor environments for a long time.
PPGI & PPGL steel coil coating is generally composed of primer, topcoat, and back coat, which play a role in isolation and protection, extending the service life of the steel coil.

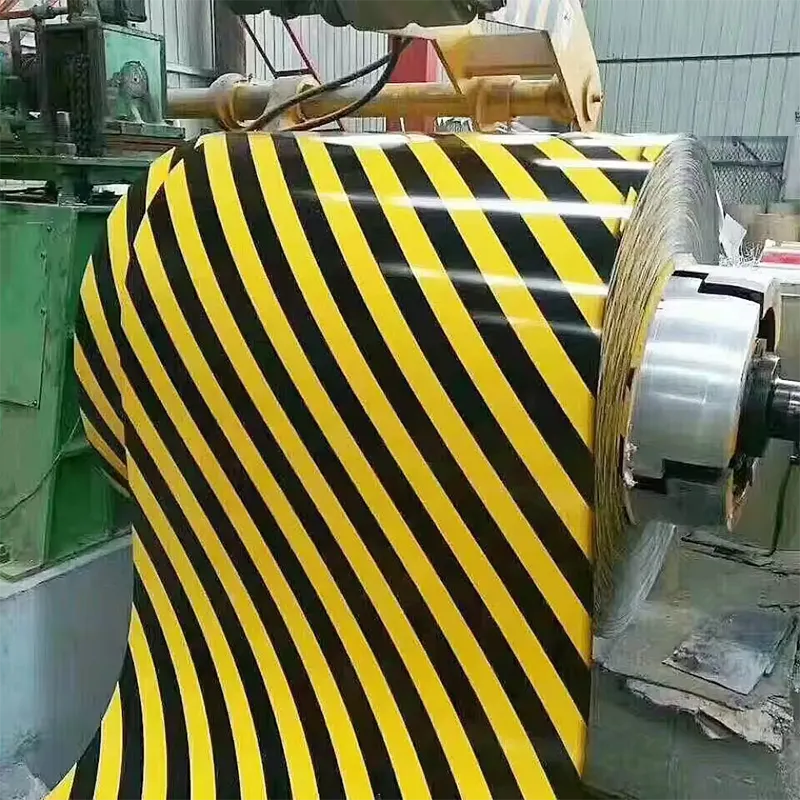

Color coated steel galvlume coils can be coated with various techniques to present a variety of colors on their surface, and can also be patterned with various patterns such as wood grain, stone grain, camouflage grain, etc.
It provides a new type of raw material for fields such as construction, shipbuilding, automobile manufacturing, household appliances, and electrical →the electrical industry.
