OCTG is the acronym for Oil Country Tubular Goods. OCTG is the tube or pipe which is used in the production of oil and gas. This pipe is used both onshore and offshore for the production of oil and gas. Oil Country Tubular Goods is a collection of rolled metal products such as drill pipe, casing and tubing, line pipe, structural pipe, couplings, connections and accessories which are used in the production of oil and gas. They are available in different sizes and lengths.
| Standard | API / ISO / DIN / GB Standard |
| Diameter | 60-120mm |
| Wall Thickness | 5-7mm |
| Length | 6-12m |
Parameter of Oil Country Tubular Goods
Casing:
Casing pipe is used for lining the borehole which has been dug into the ground for procuring oil or gas and stabilizing it. A casing pipe is subject to axial tensions and high internal pressures which are generated while pumping oil or gas. They also have to bear the external pressures arising from the surrounding rocks underground.

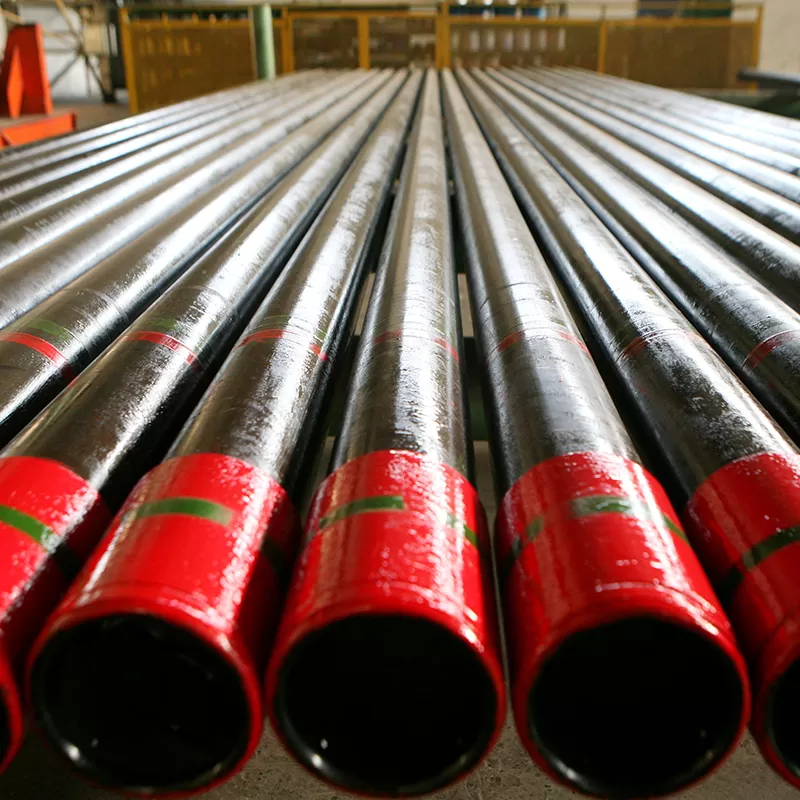

OCTG casing is large diameter pipe which needs to be cemented into the borehole. The diameters of OCTG casing pipe range from 4.5″ to 20″. The pipe is well-cemented and stands strong, it acts as the structural component of the well and offers hole integrity. The casing prevents the well from collapsing when the drilling process is on. Well cemented casing should last the life of the well.
Tubing:

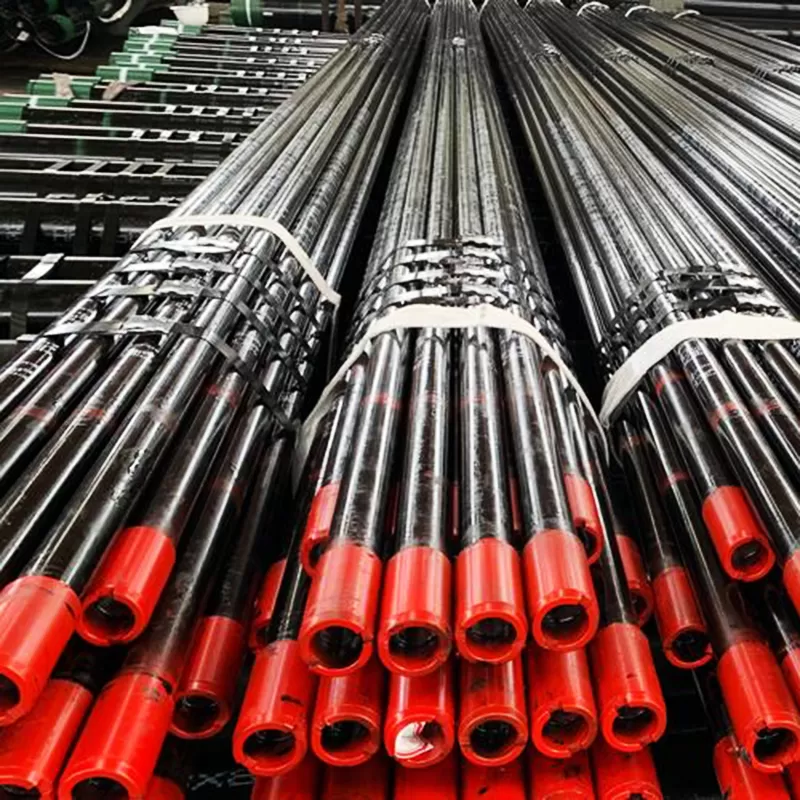

Tubing pipe is pipe that is placed inside the wellbore through the casing pipe. It is responsible for the transportation of the hydrocarbons to the surface. Tubing pipe is used for transporting natural gas or crude oil after the drilling is complete. It transports the gas and oil to the facilities for further processing. Similar to the drill pipe and casing, tubing pipe also has to withstand high pressure during the extraction process, and hence they are required to meet industry standards. Tubing pipes are available in various sizes ranging from 1 1/4” to 4.5”.
The tubing protects the casing from wear and tear caused by corrosive fluids, sand, paraffin, and more. In case of damage or breakage, the tubing pipe can be easily replaced.
Line Pipe:
Line pipe is very strong carbon steel pipe which is used for the transportation of various petroleum products, natural gas, oil and water. OCTG line pipe is available in a wide range of diameter sizes ranging from 2 inches to 48 inches.
Drill Pipe:
Drill pipe is the seamless pipe that is rotated to circulate the drilling fluid. This pipe is useful for pumping the drilling fluid back up the annulus. The annulus is the space in the oil well between the casing and the piping. Easy circulation of the fluid within the well is possible because of the annulus. The drill pipe is subject to axial tension since high torque is required for rotating the down-hole assembly drilling the fluid and circulating it. The OCTG drill pipe needs to be extremely strong as they have to bear a high amount of stress underground. The drill pipe is used at the drilling rigs and they are available in different sizes and different qualities.
