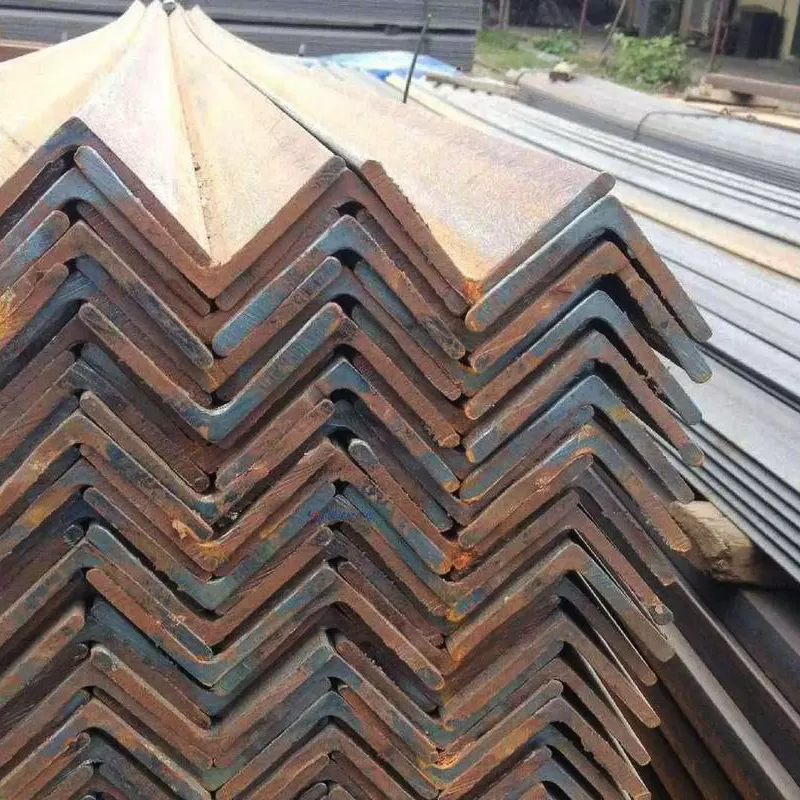

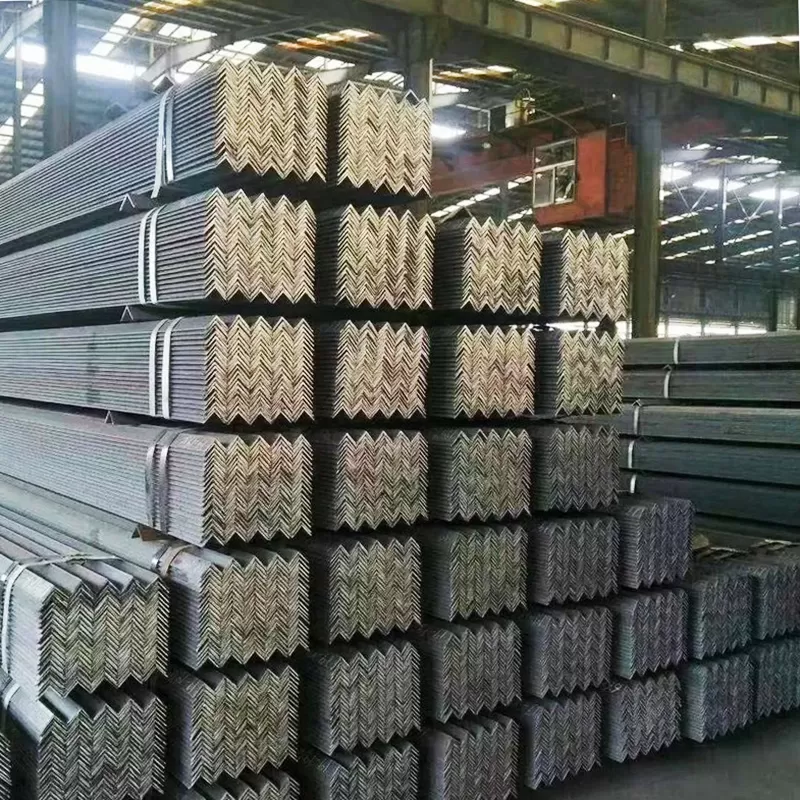

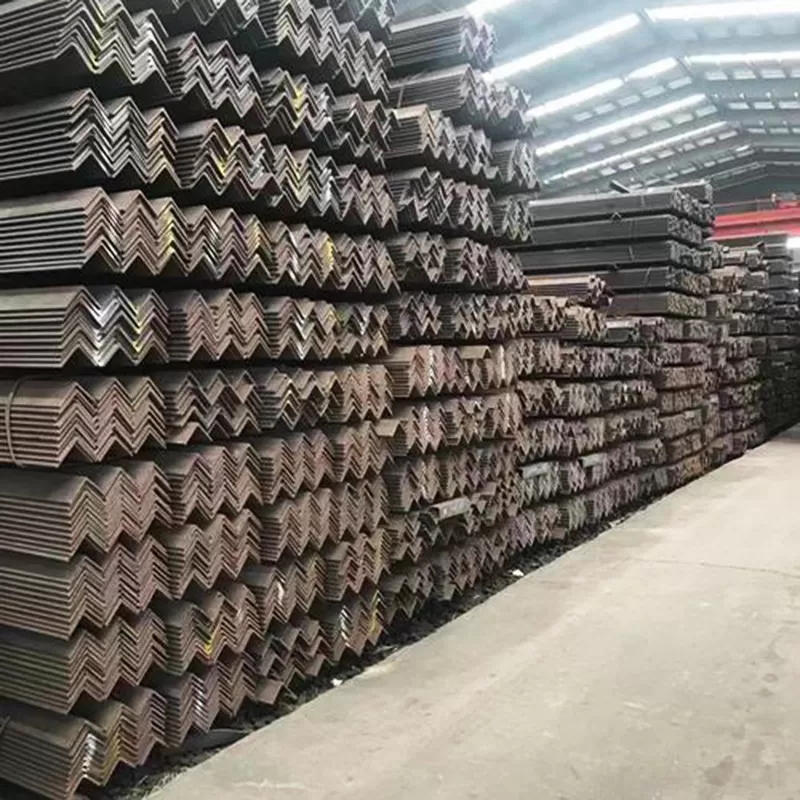

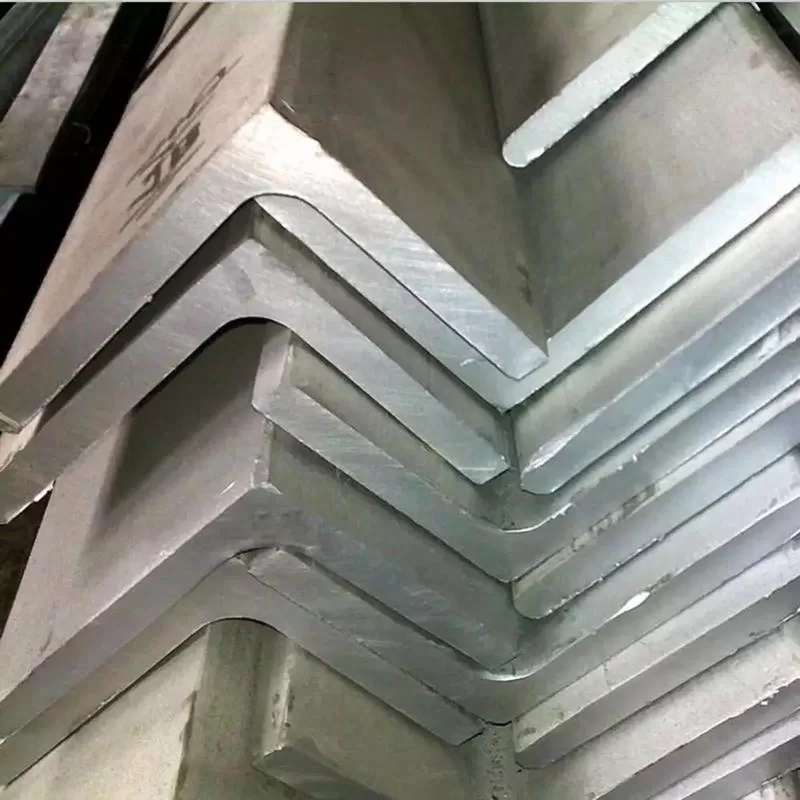

Angle Steel

Angle steel can be composed of different stress components according to the different needs of the structure, and can also be used as the connection between components. Angle steel belongs to the construction of carbon structural steel, which is a simple section of steel, mainly used for metal components and workshop frames.Good weldability, plastic deformation and mechanical strength are required in use. The raw billet of Angle steel is low carbon square billet, and the finished Angle steel is delivered in hot rolled form, normalizing or hot rolled state.

Standard	AISI/ASTM/BS/DIN/GB/JIS Standard
Dimensions	1010mm-200200mm
Length	5.8m,6m,9m,12m or As per request

Inquire Now

Parameter of Angle Steel

Standard	AISI / ASTM / BS / DIN / GB / JIS Standard
Grades	Q235/Q345, ASTM A36/A572 GR.50, S235JR/S275JR/S355JR, SS400/SS490 etc.
Size 1	20202mm---20020025mm
Size 2	75505.0mm---125758.0mm

Type	Sizes mm	Thickness mm
Equal Angle	20X20	2.0-3.0
	25X25	2.0-3.0
	30X30	2.0-3.0
	35X35	2.0-3.5
	40X40	3.0-4.0
	50X50	3.0-5.0
	60X60	3.0-6.0
	63X63	3.0-6.0
	70X70	3.0-8.0
	75X75	3.0-8.0
	80X80	4.0-10.0
	100X100	4.0-10.0
Unequal Angle	20-200	2.0-10

Features of Angle Steel

Relatively economical in price and has a high cost performance, reducing engineering costs.
Can be processed by cutting, welding, drilling, and other operations, which is convenient and fast.
Its unique shape gives it good stability when under stress and is not prone to deformation or instability.
There are different side lengths, thicknesses, and lengths available to meet the needs of various projects.
Made of high-quality steel and processed through strict processes. It has excellent tensile, compressive, and flexural strength and can withstand large loads.

Industries Using Steel

Given the distinctive nature of the mining industry, the replacement of parts and tools therein occurs rather frequently. TIANJIN MUCHANG is dedicated to helping you in choosing the steel that best suits the mining industry's demands.

Mining

Modern civilization is built upon energy. Whether it is based on fossil fuels, nuclear technology, or renewable energy sources such as wind power and solar energy, steel plays an indispensable role in energy production, transmission, and the improvement of energy efficiency.

Energy

Tool and molding steels play a crucial role in the manufacturing industry. After adding various metal components, they possess characteristics such as high hardness, durability, abrasion resistance, resistance to deformation, and tolerance to extreme temperatures.

Tool and Molding

About 90% of goods are transported by ocean, making ships and containers one of the indispensable means of transportation in the global economy. TIANJIN MUCHANG can help you find the best supplier for your marine engineering needs.

Marine Engineering

Steel, with its superior durability and unparalleled versatility, has become the material of choice for many mechanical projects. TIANJIN MUCHANG is well aware of your high standards for materials and is committed to selecting the best steel for your mechanical needs.

Mechanical Manufacturing

More than 50% of the global steel demand comes from the construction industry. Due to its high strength and cost-effectiveness, it has become an ideal material for various construction and infrastructure projects. Multiple products of TIANJIN MUCHANG have been used in some famous buildings around the world.

Construction and Infrastructure
