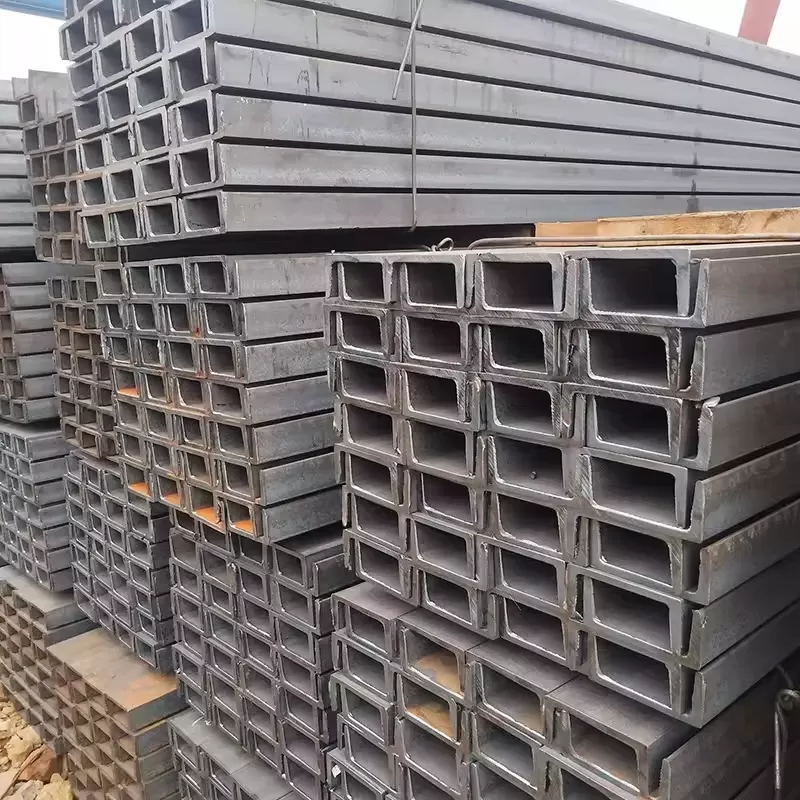

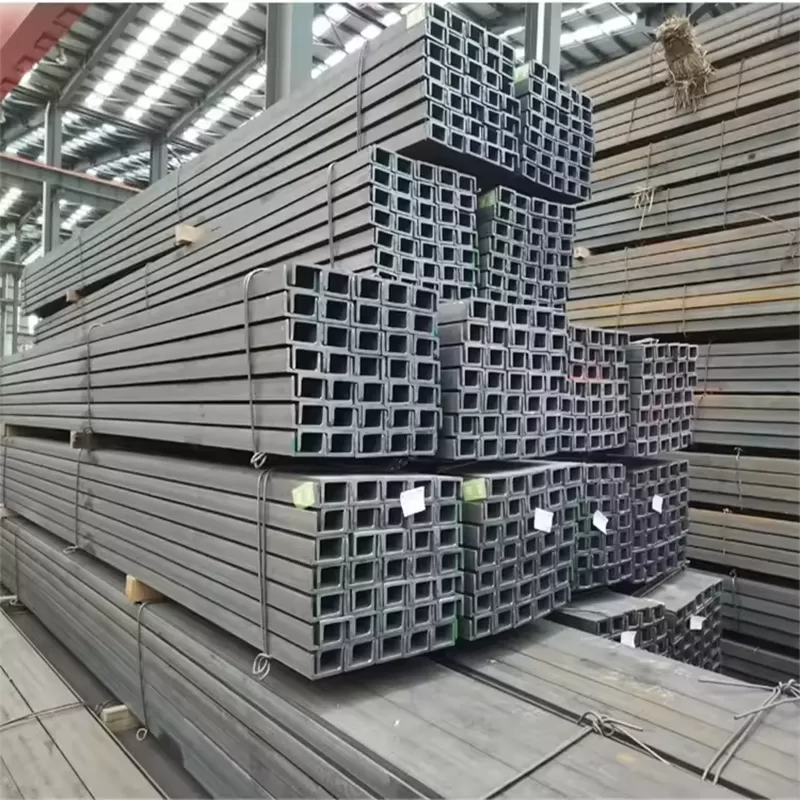

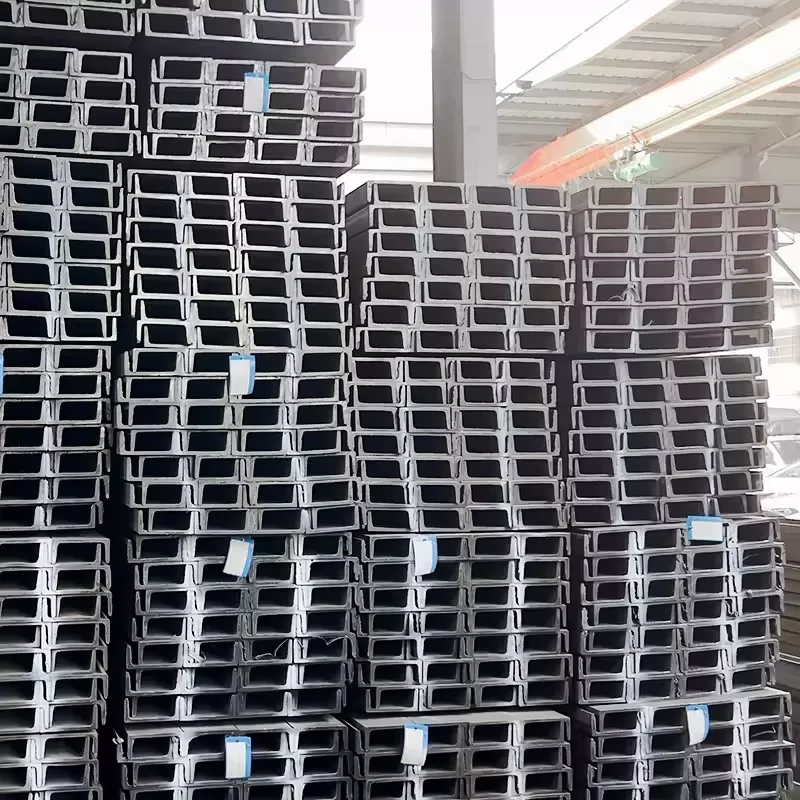

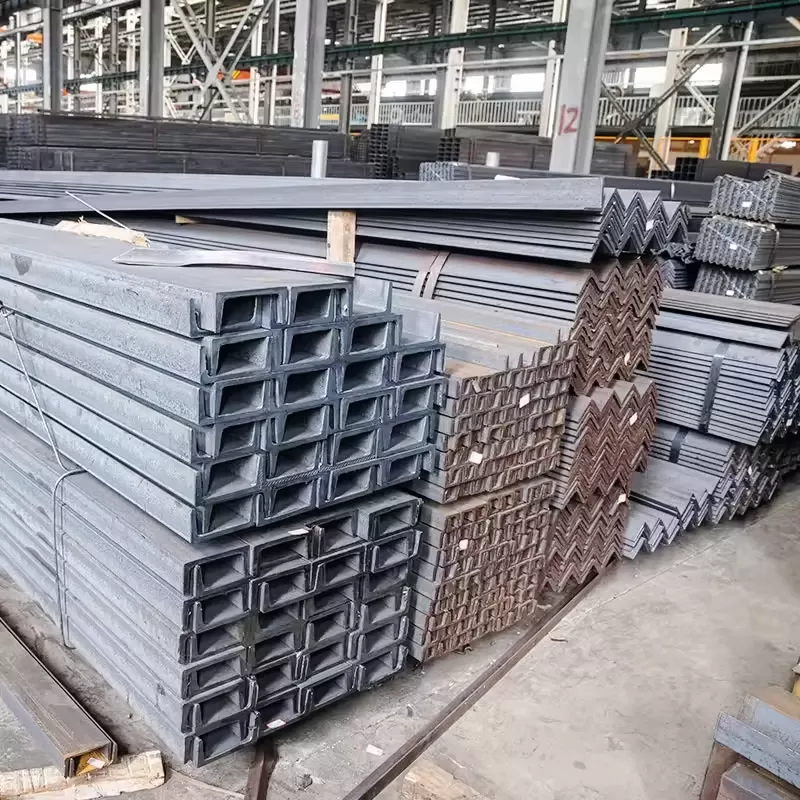

Steel U Beams

U shaped steel, also known as U channel steel or U-shaped steel beam, is a kind of steel product with a U shaped cross section. It is composed of a wide web and two flanges. U beam steel is often used as a bridging solution in the engineering field. U channel steel beam is generally applicable to multiple industries such as construction, shipbuilding, machinery manufacturing, and bridge construction, and has excellent bearing capacity and good bending resistance.

Standard	JIS / EN / ASTM / GB Standard
Sizes	Thickness: 0.2mm—2.0mm
Sizes	Width: 762mm-1850mm

Inquire Now

Parameter of Steel U Beams

Grades	Q235, SS400 / SM490, A36 / A572 GR.50, S235JR / S275JR / S355JR
Size 1	502536mm -- 125655.36.8mm
Size 2	50374.5mm -- 40010212.5mm

Specification	Size	KG/M	Specification	Size	KG/M
5#	50374.5	5.438	25#C	2508211.0	35.26
6.3#	63404.8	6.634	28#A	280827.5	31.427
8#	80435.0	8.045	28#B	280849.5	35.823
10#	100485.3	10.007	28#C	2808611.5	40.219
12#	120535.5	12.059	30#A	300857.5	34.463
14#A	140586.0	14.535	30#B	300879.5	39.173
14#B	140608.0	16.733	30#C	3008911.5	43.883
16#A	160636.5	17.24	32#A	320888.0	38.083
16#B	160658.5	19.752	32#B	3209010.0	43.107
18#A	180687.0	20.174	32#C	3209212.0	48.131
18#B	180709.0	23	36#A	360969.0	47814
20#A	200737.0	22.337	36#B	3609811.0	53.466
20#B	200759.0	25.777	36#C	36010013.0	59.118
22#A	220777.0	24.999	40#A	40010010.5	58.928
22#B	220799.0	28.453	40#B	40010212.5	65.204
25#A	250787.0	27.41	40#C	40010414.5	71.488
25#B	250809.0	31.335

Features of Steel U Beams

Unique U-shaped cross-section and relatively good stability.
Good bending resistance and compressive resistance.
Easy to process and form, and convenient for cutting and splicing.
It is multifunctional and has a wide range of application fields.
